Customizable RV Solar Power Kit

Flexible, Reliable Energy for Life on the Road

• Fully customizable solar system tailored to your RV setup

• Consistent energy production—even in partially shaded conditions

• Clean, sustainable, and dependable off-grid power source

• Modular configurations designed around your specific needs

• Backed by a 25-year solar power output warranty

Designed for RV Freedom

This custom RV solar kit is built for travelers who want dependable off-grid performance without sacrificing flexibility. With multiple configuration options, you can create a system that integrates seamlessly into your RV while delivering strong, reliable power wherever your journey takes you.

Engineered for outdoor durability, the system features UV-resistant housings for long-term use in demanding environments. The included DC-DC charger efficiently powers your RV’s house battery while also maintaining your vehicle’s starter battery—ensuring dependable operation on and off the road.

No compatibility concerns. No piecing parts together. This complete system includes mounting hardware, connectors, cables, monitoring components, and smart power electronics—all matched to work together.

Estimated daily production based on 5–6 peak sun hours.

High-Performance Solar Array

3 × 200W Solar Panels

A powerful 600W solar array designed to meet demanding RV energy requirements with consistent output.

Applications:
RV • Marine • Camping • Outdoor • Cabin • Truck

Package Configuration Options

Solar Panel Options

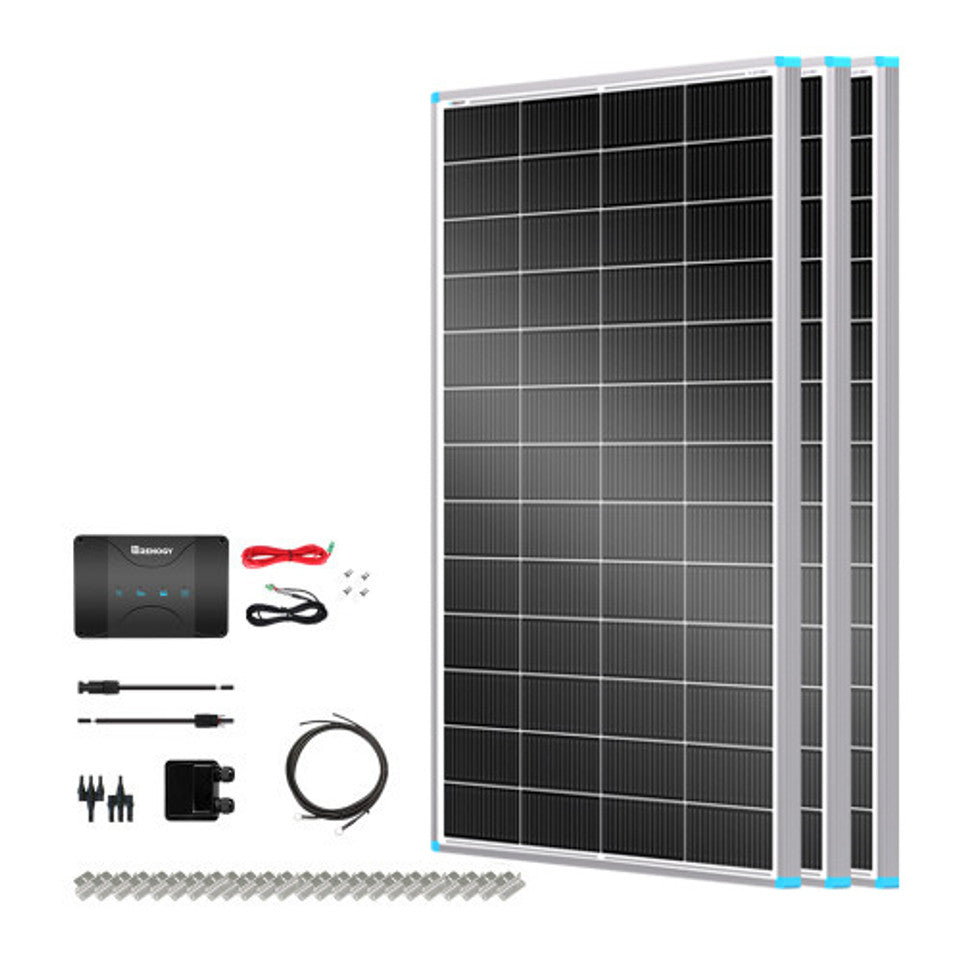

• 3 × 200W 16BB N-Type 24V Solar Panels

• OR

• 3 × 200W 12V Flexible Solar Panels

Charge Controller

• 1 × 12V 50A DC-DC On-Board Battery Charger with MPPT

Battery Options

• 3 × 12V 100Ah Pro Lithium Batteries with Bluetooth & Self-Heating

• OR

• 3 × 12V 100Ah Core Mini Lithium Batteries with Self-Heating

Inverter Options

• 1 × 3000W 12V Pure Sine Wave Inverter

• OR

• 1 × 3000W 12V Pure Sine Wave Inverter Charger

• Includes required ANL fuse set

Accessory Set – Basic

• Solar panel mounting Z-bracket set (for rigid panels)

• Solar Y-branch connector pair

• Solar panel to charge controller adapter kit

• Battery to charge controller tray cables

• Solar double cable entry gland

Accessory Set – Premium

Includes all Basic accessories, plus:

• Bluetooth monitoring module

• Fuse holder with fuse

• ANL fuse set

• Terminal connectors for 3/8-inch lugs

Technical Specifications

200W 16BB N-Type 24V Solar Panel

• Rated Power: 200W

• Open-Circuit Voltage: 37.44V

• Operating Voltage: 31.03V

• Operating Current: 6.45A

• Operating Temperature: -40°F to 185°F

• Max System Voltage: 600V DC

• Weight: 23.4 lbs

200W 12V Flexible Solar Panel

• Rated Power: 200W

• Operating Voltage: 20.1V

• Open-Circuit Voltage: 23.9V

• Operating Current: 10.02A

• Operating Temperature: -40°F to 176°F

• Lightweight, low-profile design

12V 50A DC-DC Battery Charger with MPPT

• System Voltage: 12V DC

• Max Charging Current: 50A

• Charging Efficiency: Up to 97%

• Max Solar Input Power: 660W

• Compatible with multiple battery chemistries

• Operating Temperature: -31°F to 149°F

12V 100Ah Pro Lithium Battery (Bluetooth + Self-Heating)

• Nominal Voltage: 12V

• Rated Capacity: 100Ah

• Cycle Life: Up to 5,000 cycles (80% DOD)

• Peak Discharge: 245A (30 seconds)

• Protection Rating: IP67

• Self-heating for cold-weather charging

12V 100Ah Core Mini Lithium Battery (Self-Heating)

• Nominal Voltage: 12V

• Rated Capacity: 100Ah

• Cycle Life: Up to 5,000 cycles

• Protection Rating: IP65

• Supports series and parallel connections

3000W 12V Pure Sine Wave Inverter

• Continuous Output: 3000W

• Surge Power: 6000W

• Output Voltage: 120V

• Frequency: 60Hz

• Efficiency: >90%

• Thermally controlled cooling

Warranty Coverage

Solar Panels

• 95% output at 5 years

• 90% output at 10 years

• 80% output at 25 years

• 5-year material and workmanship warranty

Accessories & Electronics

• 1-year material and workmanship warranty
