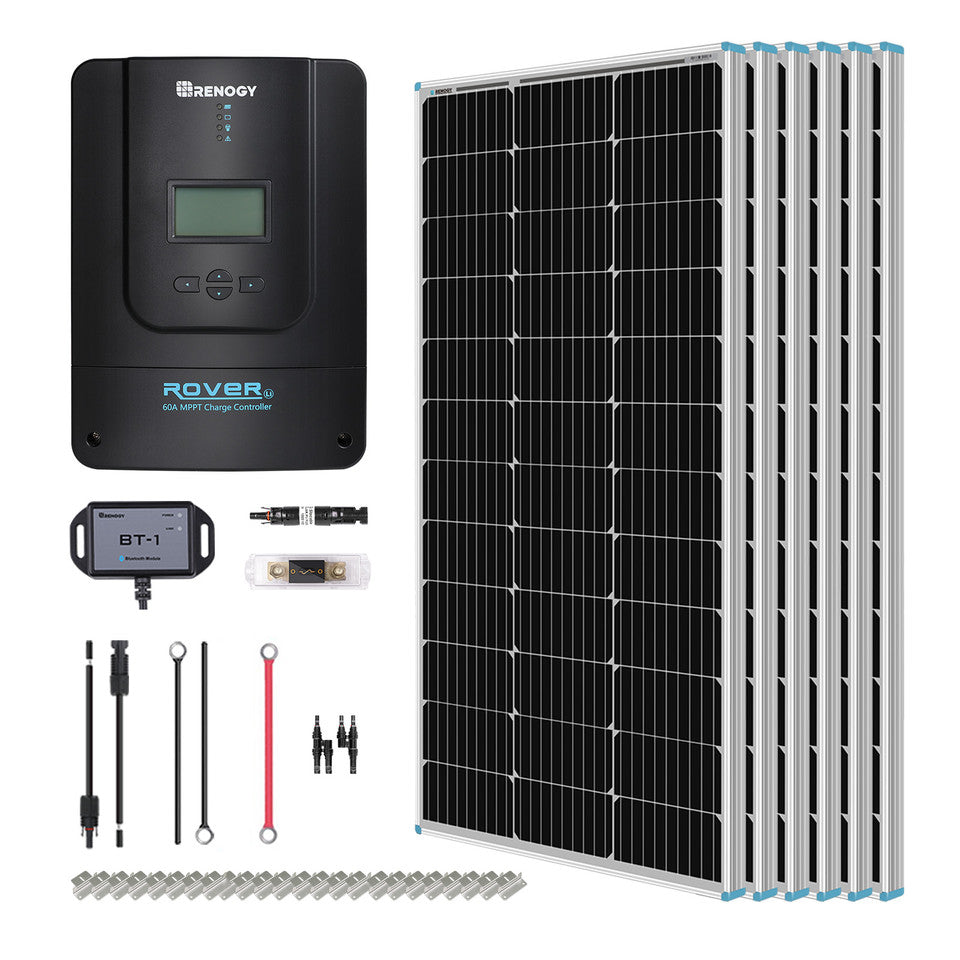

Renogy Energy 600W 12V/24V Monocrystalline Solar Premium Kit w/Rover 60A Charger Controller SKU: RKIT600DPM-RVR60-US

Renogy Energy 600W 12V/24V Monocrystalline Solar Premium Kit w/Rover 60A Charger Controller SKU: RKIT600DPM-RVR60-US

SKU: RKIT600DPM-RVR60-US

Your Price:

$979.99

Great reasons to buy from us:

Free Shipping
Free shipping
We Will Beat Any Price
We Will Beat Any Price
Fast Service
Fast Service
No Sales Tax
No Sales Tax
Safe and Secure Payments
Safe and Secure Payments
Satisfaction-Guaranteed
Satisfaction-Guaranteed

● Compatible with Renogy ONE
● Pre-assembled for Quick Installation
● Easily Monitor via Smartphone
● Comprehensive System Protection

The Renogy 600W 12V/24V Premium Solar Kit is a budget-friendly and easy-to-install solution for off-grid enthusiasts. It includes everything you need to get started—solar panels, a charge controller, wiring, fuses, and monitoring components—making it ideal for mobile setups and remote applications.

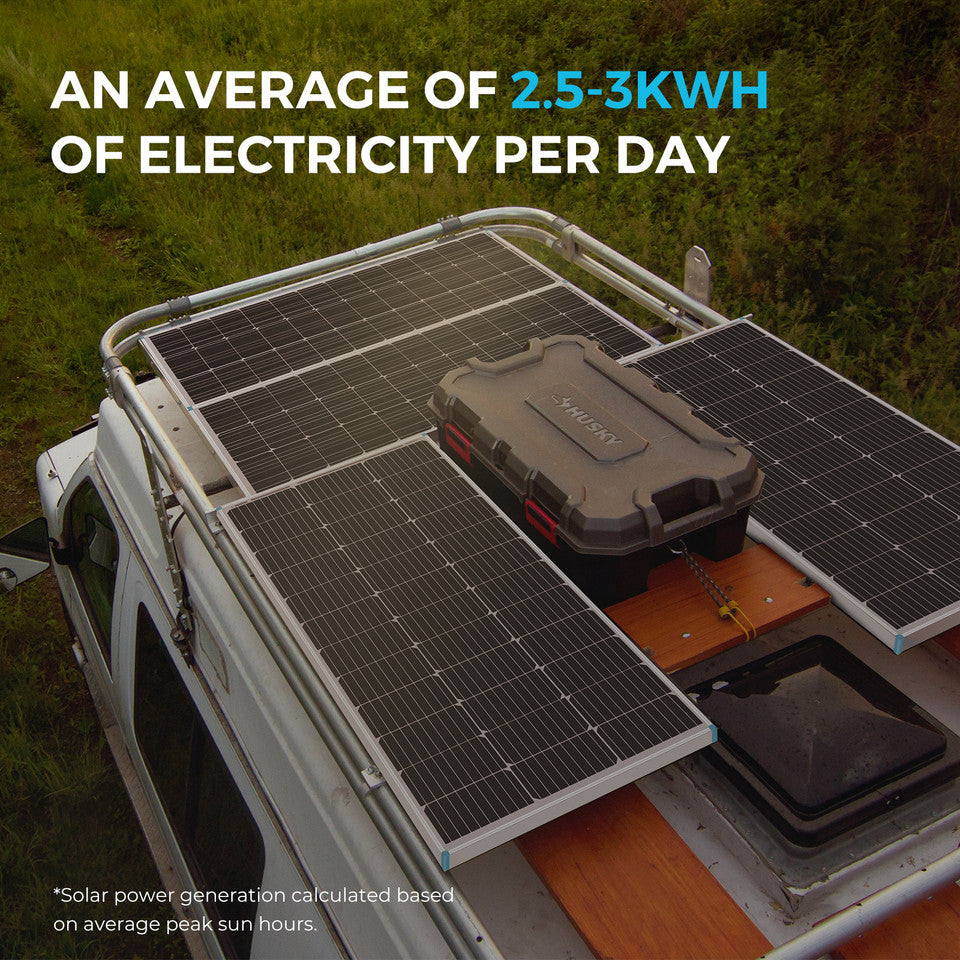

Under optimal sunlight conditions (around 5 hours of direct sunlight daily), the kit generates 2.5 to 3 kWh of electricity per day. The six 100W solar panels are compact yet powerful enough to support medium household appliances like a TV, washing machine, or electric cooktop. Equipped with the Rover Li 60A MPPT charge controller, the system is scalable—supporting up to 800W in a 12V setup and up to 1600W in a 24V system.

This Premium Kit offers a dependable, eco-friendly energy source suitable for RVs, cabins, barns, boats, and campers. It's also ideal for ground-mounted setups at campsites or remote locations, powering equipment like water pumps, greenhouses, and off-grid appliances during emergencies.

Optimized Efficiency

The built-in bypass diode enhances panel performance in low-light conditions, while the TPT back sheet effectively dissipates excess heat, ensuring stable and consistent energy output. The solar module achieves an impressive efficiency rate of up to 17.8%.

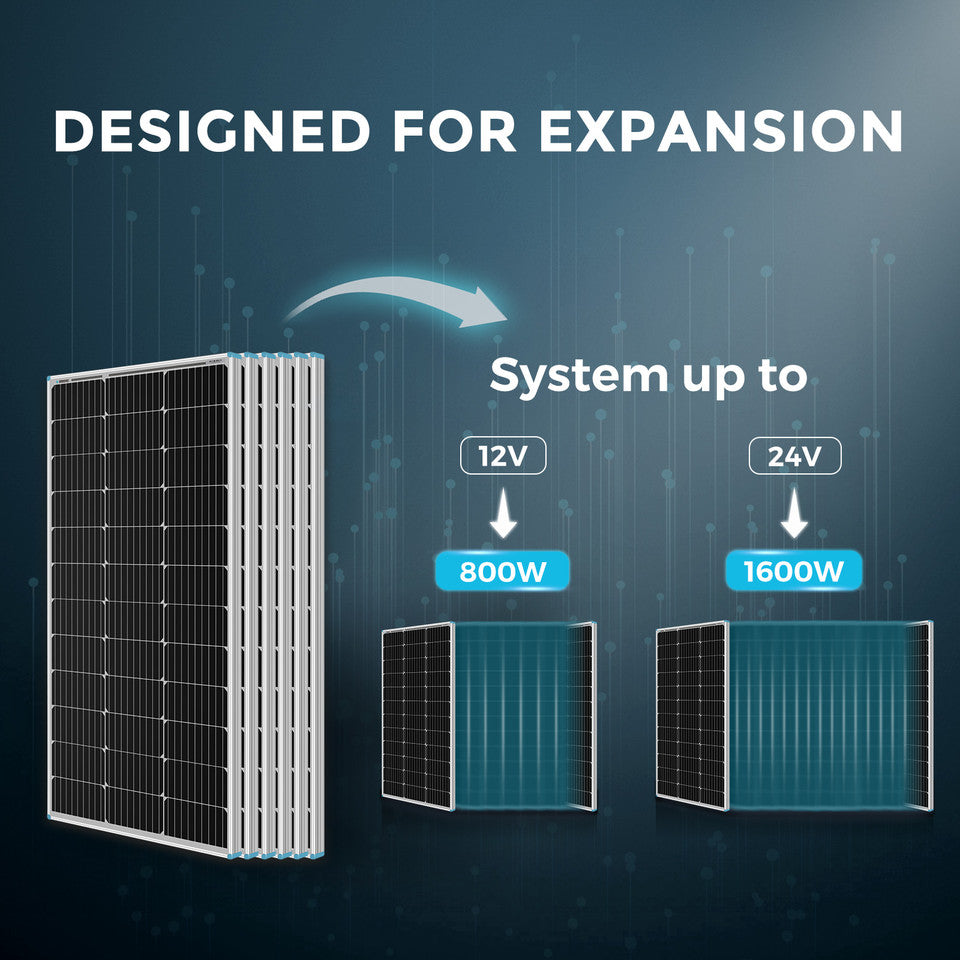

Paired with the Rover Li 60A MPPT charge controller, the system offers room to grow—expandable up to 800W for 12V setups and up to 1600W for 24V systems, allowing you to increase your solar capacity as your energy needs grow.

Full System Protection

The Rover Li 60A MPPT Charge Controller has built-in protection to safeguard your systems, such as reverse polarity, overcharging, overload, short-circuiting, and reverse current.

Automatic Detection and Broad Compatibility

The system automatically recognizes 12V, 24V, 36V, or 48V DC voltages, ensuring seamless integration with various setups. It features an LCD display and multiple LED indicators to provide real-time information on solar charging status, battery performance, customizable settings, and error notifications.

Solid Quality

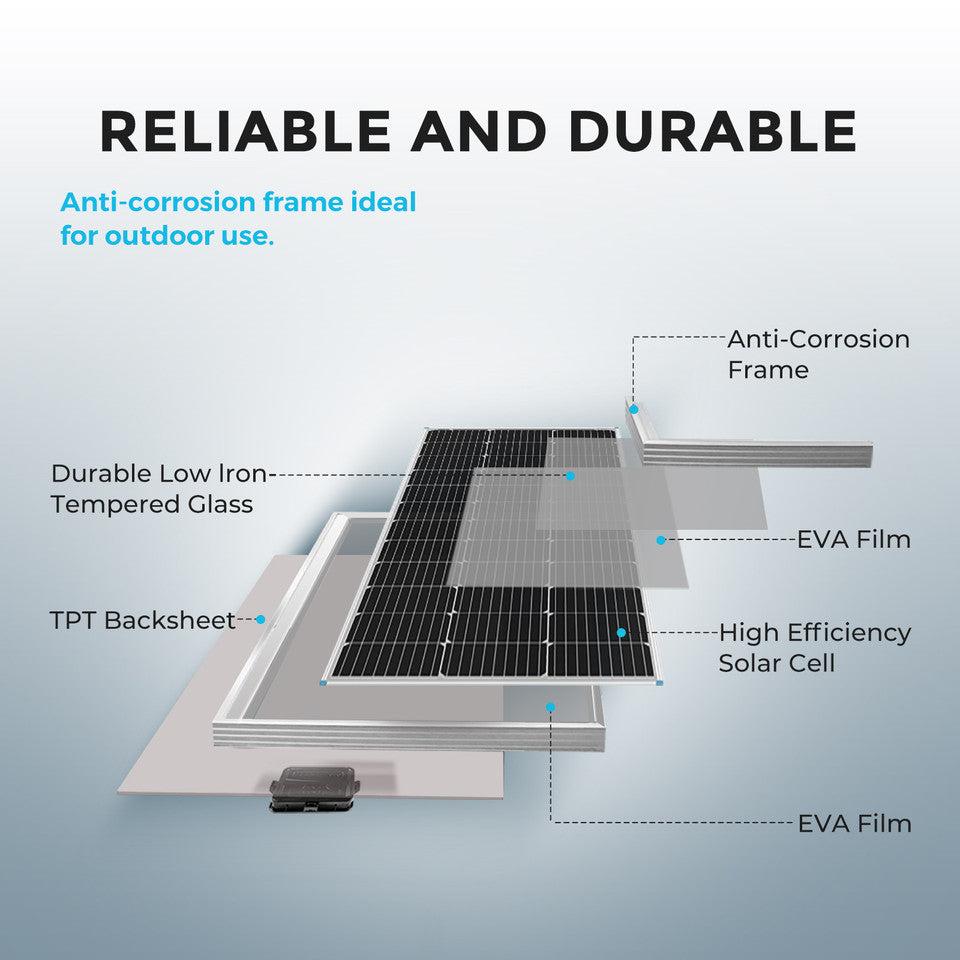

Advanced encapsulation material with multi-layered sheet laminations protects cells from physical damage or distortion, improving cell performance and providing a long service life.

No Fear of Weather Challenge

The IP65 Junction Box protects against environmental particles and low-pressure water jets. These IP67 waterproof solar connectors ensure that the water and dust will not enter the connector during extended outdoor use. Effectively preventing water from seeping in.

Ready to Install

This Renogy Solar Kit includes the equipment necessary for building a new system, such as necessary cables, Z-brackets, and pre-drilled holes on the back frame of the panel, allowing fast and secure mounting.

Wiring Diagram

MARINE

CAMPING

OUTDOOR

CABIN

TRUCK

Package Includes

100W Mono Solar Panel 6 x	Rover Li 60A MPPT Charge Controller 1 x
20ft 10AWG AK 2ft 4AWG Fuse Cable 8ft 4AWG Tray Cable 1 x	Mounting Z Brackets (Set) 6 x
15A In-line Fuse and 60A ANL Fuse 1 x	Renogy Solar Y Branch Connectors MMF+FFM Pair 1 x
BT-1 Bluetooth Module 1 x

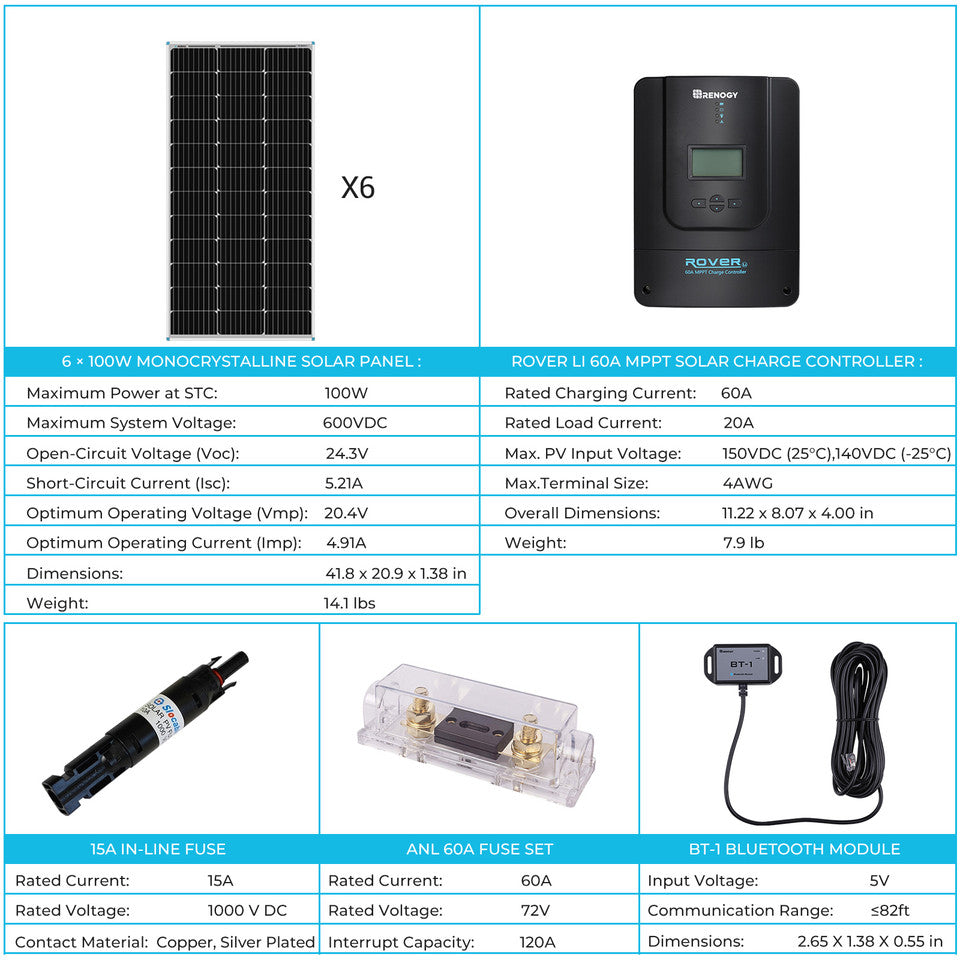

RENOGY 100W MONOCRYSTALLINE SOLAR PANEL

Maximum Power: 100W

Maximum System Voltage: 600V DC (UL)

Open-Circuit Voltage (Voc): 24.3V

Optimum Operating Voltage (Vmp): 20.4V

Short-Circuit Current (Isc): 5.21A

Optimum Operating Current (Imp): 4.91A

Dimensions: 41.8 x 20.9 x1.4 in

Weight: 14.1lbs/6.4kg

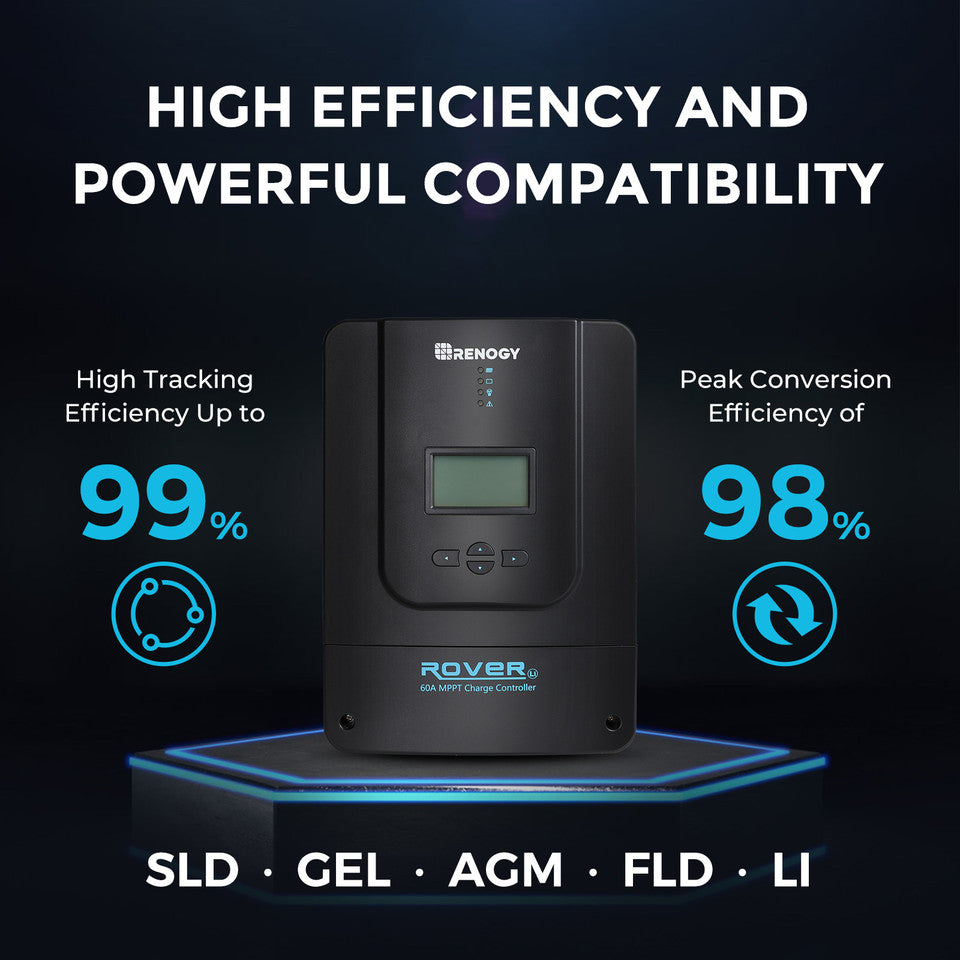

ROVER LI 60A MPPT SOLAR CHARGE CONTROLLER

Nominal Voltage: 12V/24V/36V/48V Auto Recognition (for non-lithium batteries)

Rated Charge Current: 60A

Rated Load Current: 20A

Max. PV Input Voltage: 150 VDC (25°C), 140VDC (-25°C)

Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V

Compatible bluetooth: Renogy BT-1 Bluetooth module

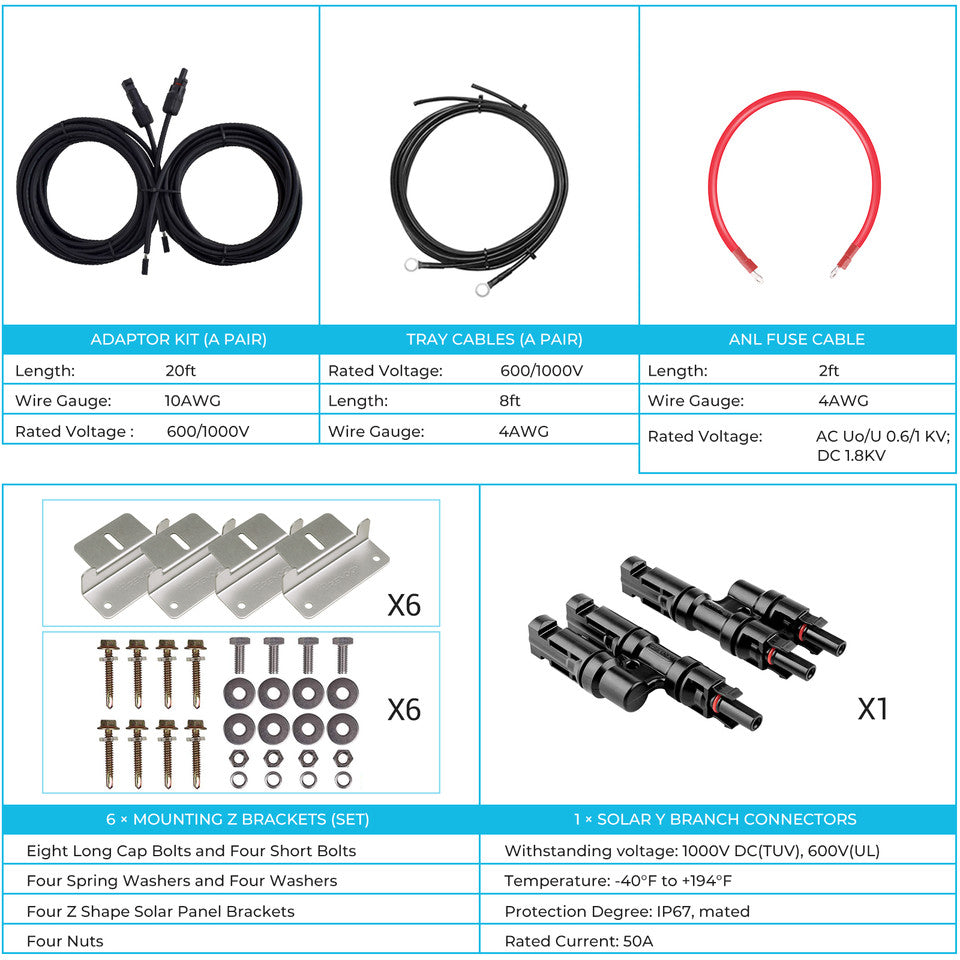

RENOGY 8FT 4AWG TRAY CABLES (A PAIR)

Length: 8ft

AWG: 4

Rating Voltage: 600/1000V

Temperature: -40°F to +185°F

RENOGY 2FT 4AWG ANL FUSE CABLE

Length: 2ft

AWG: 4

Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV

Temperature: -40°F to +194°F

RENOGY 20FT 10AWG SOLAR ADAPTOR KIT (A PAIR)

Length: 20ft

AWG: 10

Rating Voltage: 600/1000V

Temperature: -40°F to +185°F

RENOGY 15A IN-LINE FUSE HOLDER W/FUSE

Rated Current: 15A

Rated Voltage: 1000 V DC

Contact Material: Copper, Silver Plated

Replaceable Fuse: Cylindrical PV Fuse (10x38mm

ANL 60A FUSE SET

Current Rating: 60A

Voltage Rating: 72V

Interrupt Capacity: 360A (48V)

opc:

BT-1 BLUETOOTH MODULE

Input Voltage: 5V

Communication Range: ≤82ft

Compatibel Models: All Renogy Controllers with RJ12 port

Operation Temperature: -20°C~85°C (-4°F to 185°F)

RENOGY SOLAR SOLAR Y BRANCH CONNECTORS MMF+FFM PAIR

Withstanding voltage: 1000V DC(TUV), 600V(UL)

Protection Class: Class II

Protection Degree: IP67, mated

Insulation Material: PC/PA

Temperature Range: -40°F to 194°F

opc:

MOUNTING Z BRACKETS (SET)

Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers

Four Z Shape Solar Panel Brackets: Four Nuts

WARRANTY INFORMATION

Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty

Accessories: 1-year material and workmanship warranty
