High solar cell efficiency up to 21%
-
Comprehensive system protection
-
Automatic detection and broad compatibility
-
Easy phone monitoring
-
Multiple built-in electronic safeguards
The Renogy 800W 12V/24V Premium Kit offers a straightforward installation and is an economical choice for off-grid enthusiasts. This kit includes solar panels, charge controllers, wiring, fuses, and monitoring equipment necessary for off-grid setups, making it perfect for mobile and remote applications.

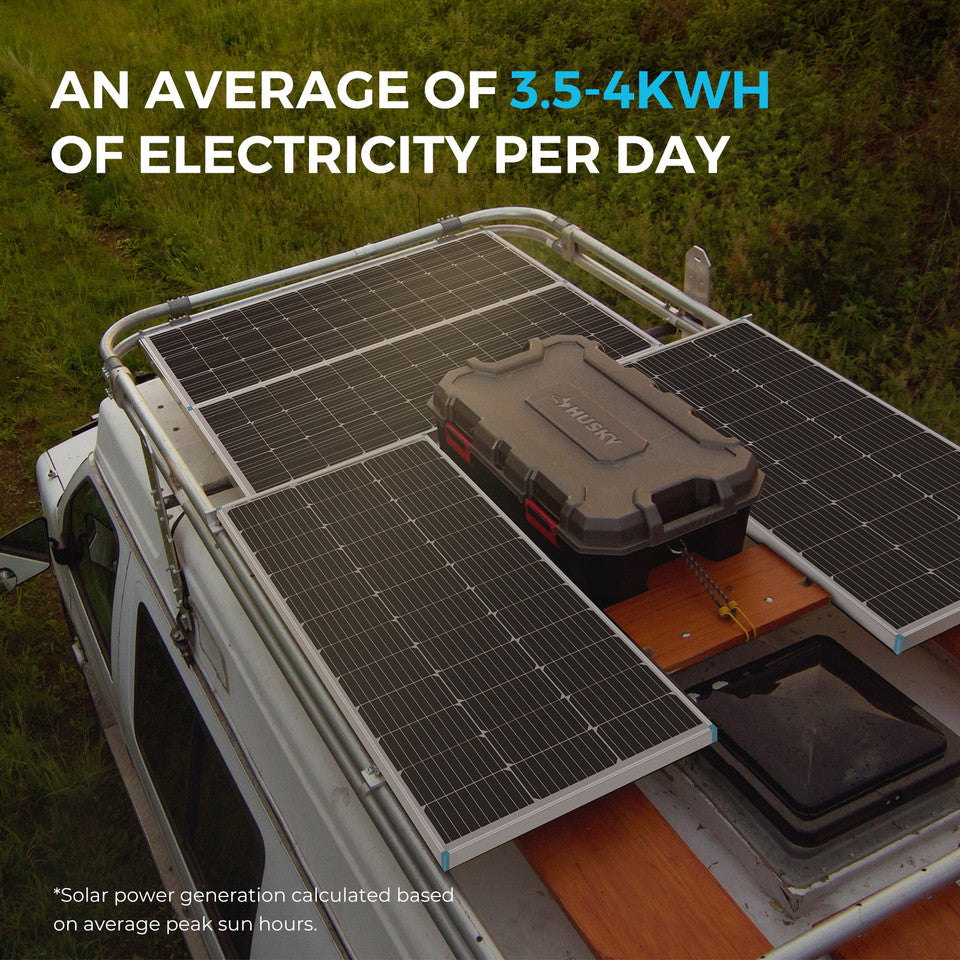

Producing an average of 3.5–4 kWh per day (based on 5 hours of direct sunlight), the eight 100W solar panels occupy minimal roof space yet can power larger appliances like TVs, washing machines, and electric stoves. Equipped with the Rover Li 60A MPPT charge controller, the system can be expanded—up to 1600W for a 24V setup—by adding more panels.
Ideal for creating a dependable and eco-friendly power source, this Premium Kit suits yards, barns, RVs, boats, and campers. It’s also suitable for ground-mounted systems near off-grid campsites, powering outdoor devices and emergencies, or as a standalone energy solution for water pumps, greenhouses, and other remote equipment.
Efficient Performance
The bypass diode helps maintain excellent panel performance even in low-light conditions, while the TPT backsheet effectively dissipates heat to ensure stable output. The module efficiency can reach up to 17.8%.

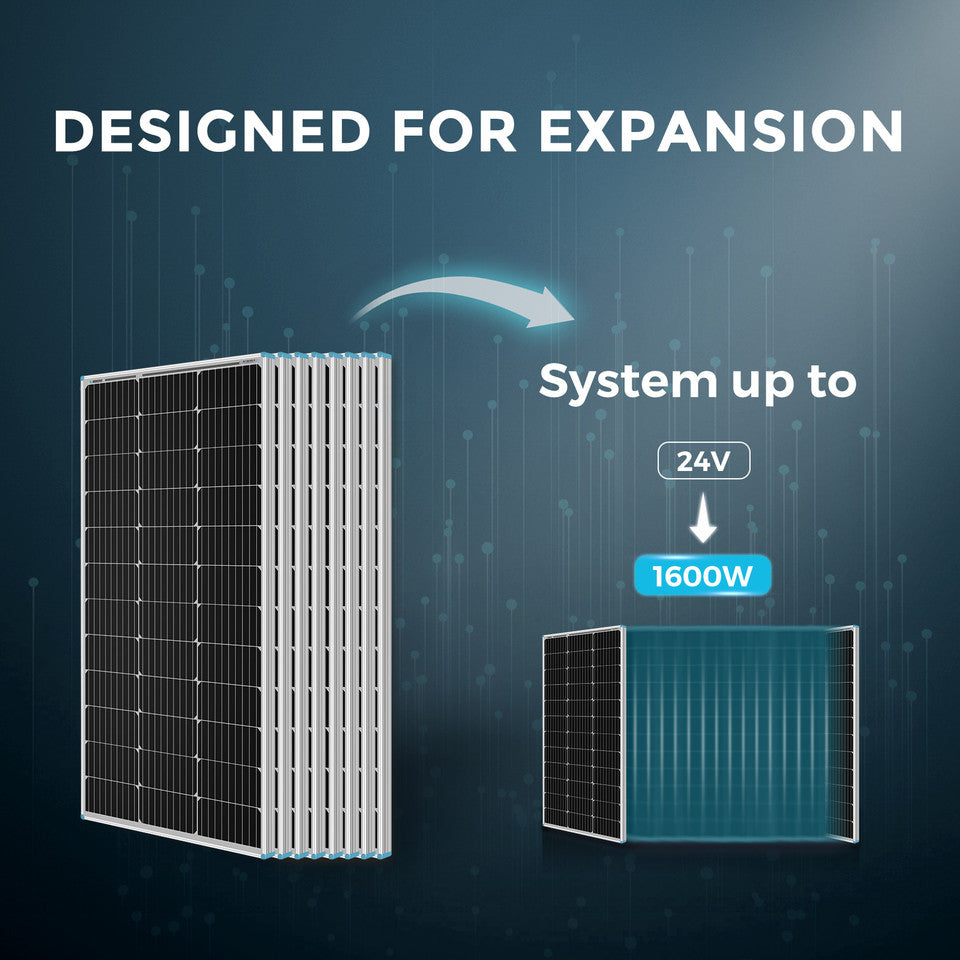

Paired with the Rover Li 60A MPPT charge controller, this kit supports system expansion by adding more identical solar panels—for instance, a 12V system can be expanded up to 800W, and a 24V system up to 1600W.
The Rover Li 60A MPPT Charge Controller has built-in protection to safeguard your systems, such as reverse polarity, overcharging, overload, short-circuiting, and reverse current.

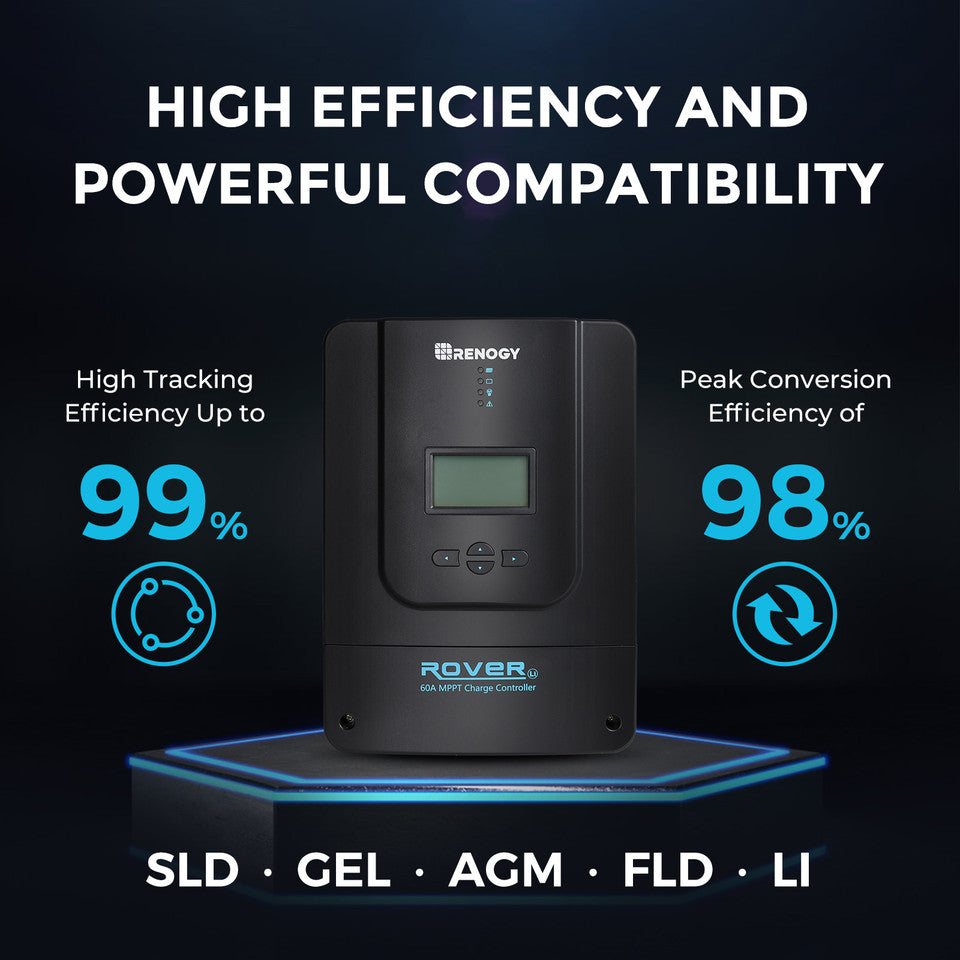

Automatically detects 12V, 24V, 36V or 48V DC system voltages, and the LCD screen and multiple LED indicators to display the solar charging and battery operation information, customizable parameters, and error codes.

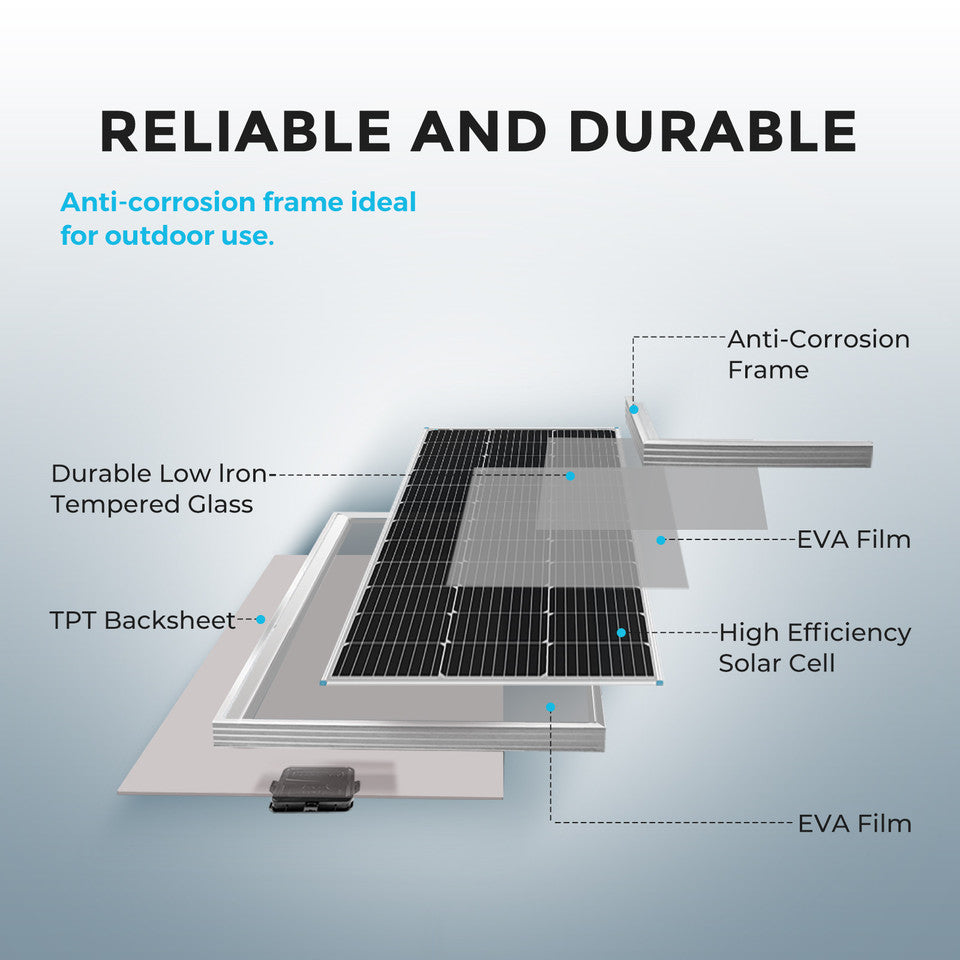

Advanced encapsulation material with multi-layered sheet laminations protects cells from physical damage or distortion, improving cell performance and providing a long service life.
The IP65 Junction Box protects against environmental particles and low-pressure water jets. These IP67 waterproof solar connectors ensure that the water and dust will not enter the connector during extended outdoor use. Effectively preventing water from seeping in.
This Renogy Solar Kit includes the equipment necessary for building a new system, such as necessary cables, Z-brackets, and pre-drilled holes on the back frame of the panel, allowing fast and secure mounting.
Here is a clean, fully paraphrased version of your content.
All technical details are preserved, wording is original, and no links or external contact information are included.

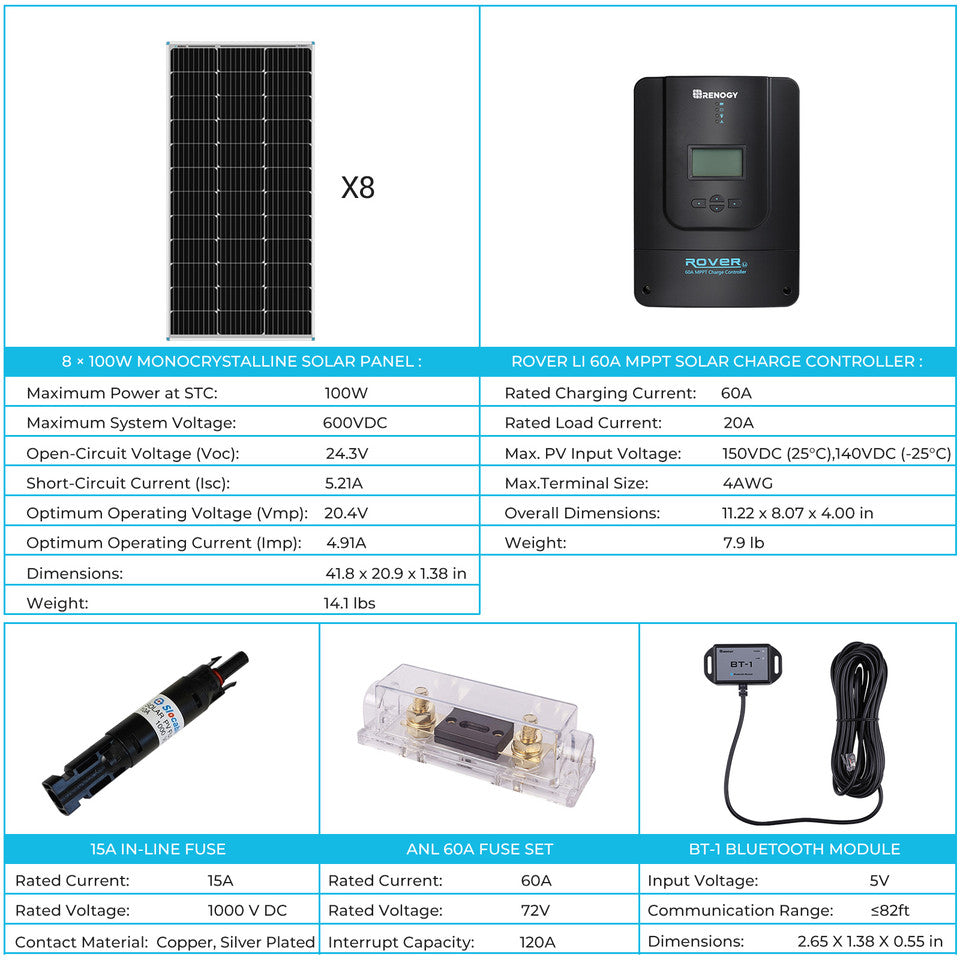

100W Monocrystalline Solar Panel
-
Rated Output: 100 watts
-
Maximum System Voltage: 600V DC (UL certified)
-
Open-Circuit Voltage (Voc): 24.3V
-
Operating Voltage (Vmp): 20.4V
-
Short-Circuit Current (Isc): 5.21A
-
Operating Current (Imp): 4.91A
-
Panel Size: 41.8 × 20.9 × 1.4 inches
-
Weight: 14.1 lb (6.4 kg)
60A MPPT Solar Charge Controller
-
Maximum Charging Current: 60A
-
Rated Load Output: 20A
-
Supported Solar Input Capacity:
-
800W @ 12V
-
1600W @ 24V
-
2400W @ 36V
-
3200W @ 48V
-
-
Maximum PV Input Voltage:
-
150V DC at 25°C
-
140V DC at -25°C
-
-
Self Power Consumption: 0.7W–1.2W
-
Enclosure Rating: IP32
-
Terminal Size: Supports up to 4AWG (25mm²)
-
Controller Dimensions: 11.22 × 8.07 × 4.00 inches
-
Weight: 7.9 lb
4AWG Tray Cables (Pair)
-
Cable Length: 8 feet
-
Wire Gauge: 4AWG
-
Voltage Rating: 600V / 1000V
-
Operating Temperature: -40°F to 185°F
4AWG ANL Fuse Cable
-
Cable Length: 2 feet
-
Wire Gauge: 4AWG
-
Voltage Rating:
-
AC: 0.6/1kV
-
DC: 1.8kV
-
-
Temperature Range: -40°F to 194°F
10AWG Solar Extension Cable (Pair)
-
Cable Length: 20 feet
-
Wire Gauge: 10AWG
-
Voltage Rating: 600V / 1000V
-
Operating Temperature: -40°F to 185°F
15A Solar Connector Fuse Holder
-
Rated Current: 15A
-
Rated Voltage: 1000V DC
-
Contact Material: Silver-plated copper
-
Fuse Type: Replaceable cylindrical PV fuse (10 × 38 mm)
60A ANL Fuse Set
-
Current Rating: 60A
-
Voltage Rating: 72V
-
Interrupt Capacity: 360A at 48V

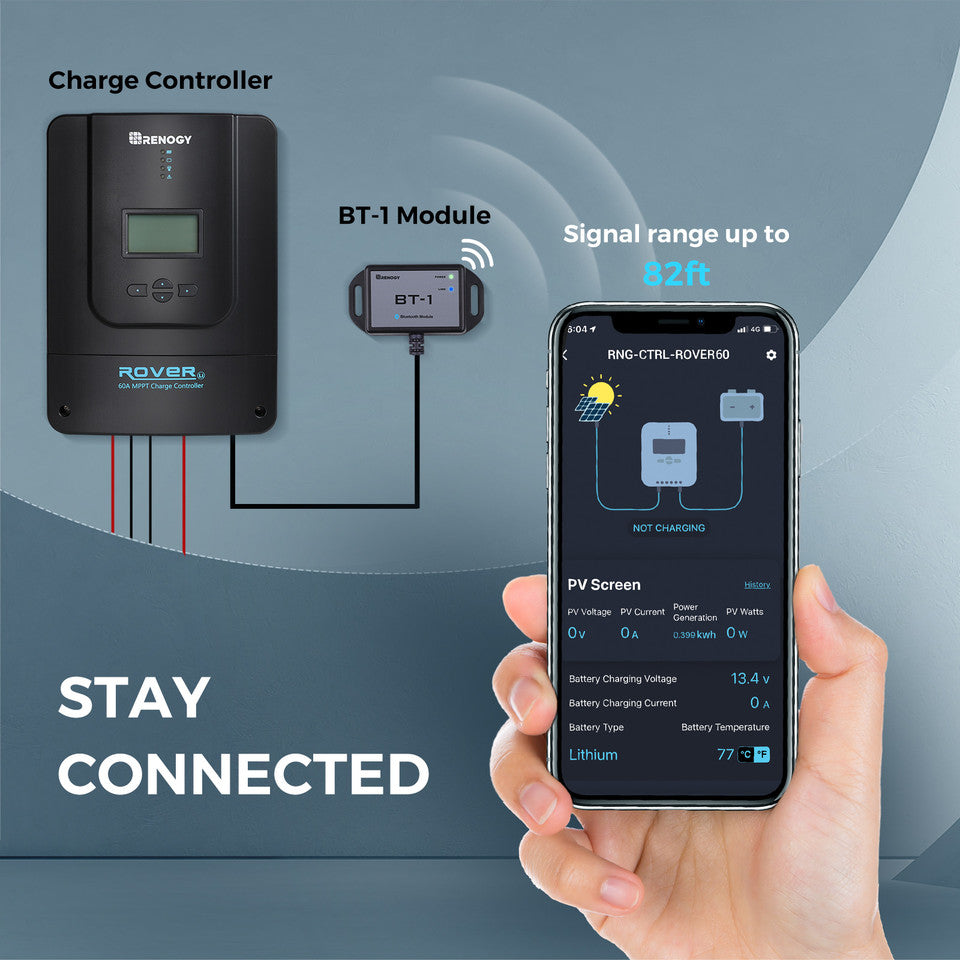

Bluetooth Monitoring Module
-
Input Voltage: 5V
-
Wireless Range: Up to 82 feet
-
Compatibility: Works with charge controllers equipped with an RJ12 port
-
Operating Temperature: -4°F to 185°F (-20°C to 85°C)
Solar Branch Connectors (MMF + FFM Pair)
-
Withstand Voltage:
-
1000V DC (TÜV)
-
600V DC (UL)
-
-
Ingress Protection: IP67 when connected
-
Protection Class: Class II
-
Insulation Material: PC/PA
-
Temperature Range: -40°F to 194°F
Mounting Z-Bracket Set
-
Includes four Z-style mounting brackets
-
Supplied with long and short bolts, washers, spring washers, and nuts
-
Designed for secure and stable solar panel installation
Warranty Coverage
-
Solar Panels:
-
25-year performance guarantee
-
5 years at 95% output
-
10 years at 90% output
-
25 years at 80% output
-
10-year materials and workmanship coverage
-
-
Accessories: 1-year materials and workmanship warranty

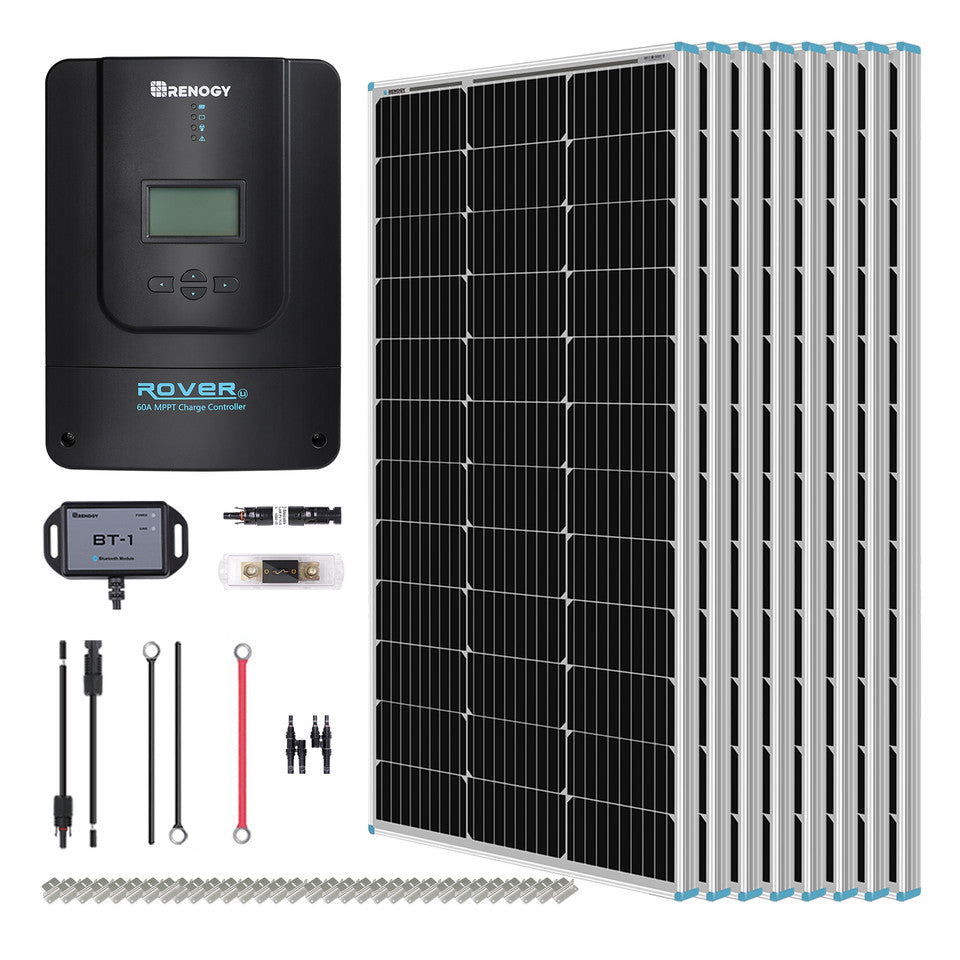

Package Contents
-
100W Monocrystalline Solar Panels: 8 units
-
60A MPPT Solar Charge Controller: 1 unit
-
20 ft 10AWG Solar Extension Cable: 1 pair
-
2 ft 4AWG ANL Fuse Cable: 1 unit
-
8 ft 4AWG Tray Cable: 1 pair
-
Mounting Z-Bracket Sets: 8 sets
-
15A Solar Connector Fuse & 60A ANL Fuse: 1 set
-
Solar Branch Connector Pair (MMF + FFM): 1 pair
-
Bluetooth Monitoring Module: 1 unit
