Renogy Energy 100W 12V Solar RV Kit SKU: RKIT100RT-D30D1

Custom RV Solar Power Kit

Tailored Solar Energy for Life on the Road

This customizable RV solar kit is designed for travelers who want reliable, flexible power while living off-grid. Whether parked in remote mountain terrain or traveling along the coastline, this system provides dependable energy wherever your journey takes you.

Key Benefits

Fully Customizable Design

Choose between rigid or flexible 100W solar panels to best suit your available space, mounting preferences, and travel style.

Complete, Ready-to-Install System

Everything required is included in one package—solar panels, a DC-DC MPPT battery charger, optional lithium battery, inverter options, plus all necessary cables, mounting hardware, connectors, and monitoring accessories. No need to source components separately.

Dual-Battery Charging Capability

The DC-DC charging system efficiently charges both your RV’s house battery and the vehicle’s starter battery, improving reliability on the road.

Built for Outdoor Conditions

Durable, UV-resistant housings ensure long-lasting performance in demanding outdoor environments.

Smart Battery Options

Select between a self-heating lithium battery for cold climates or a Bluetooth-enabled lithium battery for easy system monitoring.

Inverter Upgrade Options

Run AC appliances with a 1000W pure sine wave inverter, or upgrade to an inverter-charger for added functionality and flexibility.

Simple Installation

Designed for straightforward installation, making it suitable for both DIY users and professional installers.

Performance Expectations

Estimated energy production is based on 5–6 peak sun hours per day.

Applications

RV • Marine • Camping • Outdoor • Cabin • Truck

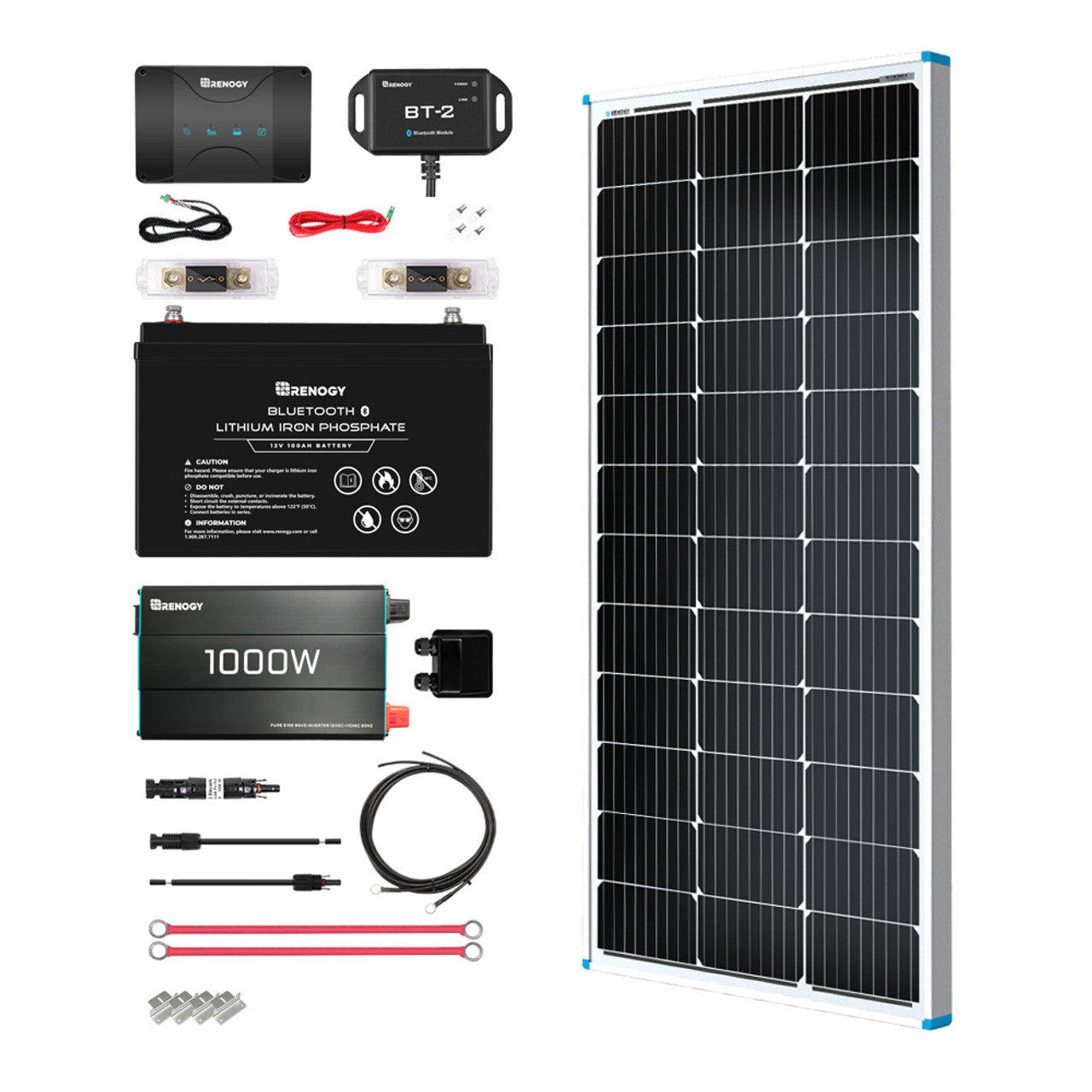

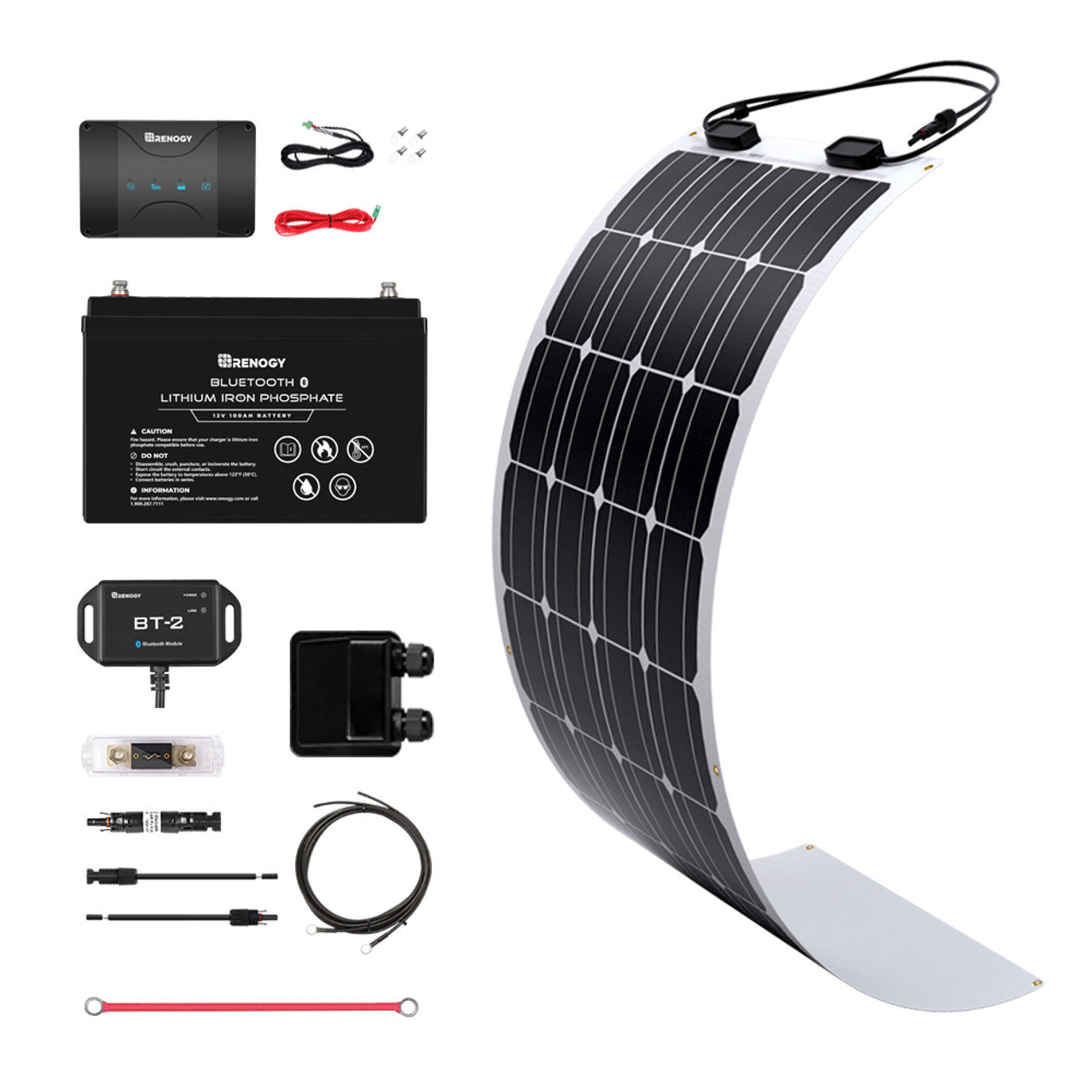

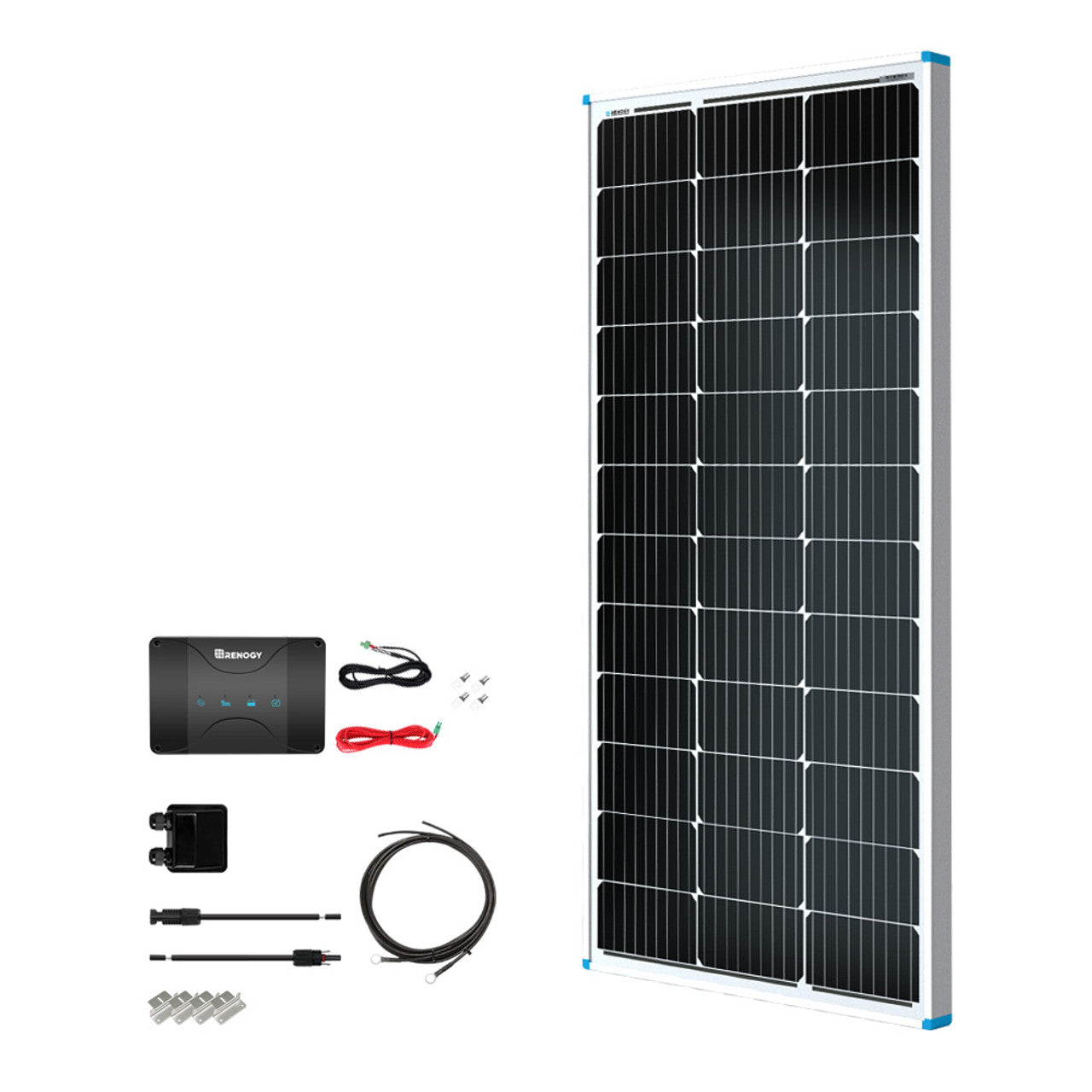

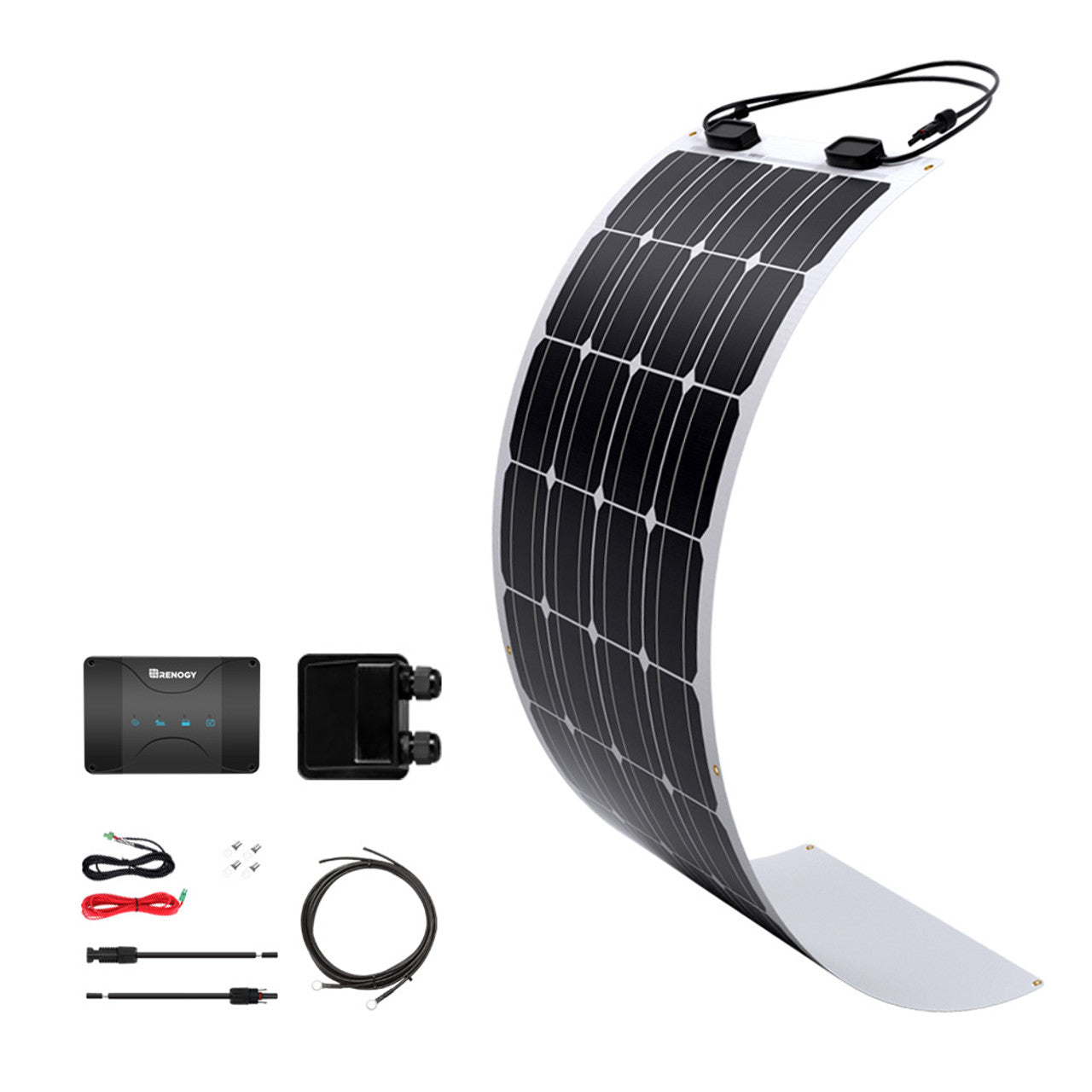

Kit Configuration Options

Solar Panel Options

• 1 × 100W 12V Rigid Solar Panel

• OR

• 1 × 100W 12V Flexible Solar Panel

Charge Controller

• 1 × 12V 30A DC-DC On-Board Battery Charger with MPPT

Battery Options

• 1 × 12V 100Ah Lithium Battery with Built-In Bluetooth

• OR

• 1 × 12V 100Ah Self-Heating Lithium Battery with External Bluetooth Module

Inverter Options

• 1 × 1000W 12V Pure Sine Wave Inverter

• Includes fuse set and fuse cable

Accessory Set – Basic

• Solar panel mounting Z-bracket set (for rigid panels)

• Solar panel to charge controller adapter kit

• Battery to charge controller tray cables

• Solar double cable entry gland

Accessory Set – Premium

Includes all Basic accessories, plus:

• Bluetooth monitoring module

• Fuse holder with fuse

• ANL fuse set

• Terminal connectors for 3/8-inch lugs

Technical Specifications

100W 12V Rigid Solar Panel

• Rated Power: 100W

• Open-Circuit Voltage: 24.3V

• Short-Circuit Current: 5.21A

• Operating Voltage: 20.4V

• Operating Current: 4.91A

• Operating Temperature: -40°F to 176°F

• Max System Voltage: 600V DC

• Dimensions: 41.8 × 20.9 × 1.38 in

• Weight: 14.1 lbs (6.4 kg)

100W 12V Flexible Solar Panel

• Rated Power: 100W

• Operating Voltage: 18.9V

• Open-Circuit Voltage: 22.5V

• Short-Circuit Current: 5.75A

• Operating Current: 5.29A

• Max System Voltage: 600V DC

• Operating Temperature: -40°F to 176°F

• Dimensions: 48.0 × 21.6 × 0.08 in

• Weight: 4.2 lbs (1.9 kg)

12V 30A DC-DC Battery Charger with MPPT

• Input Voltage Range: 9–16V DC

• Max Charging Current: 30A

• Charging Efficiency: Up to 97%

• Max Solar Input Power: 400W

• Supported Battery Types: Lead-acid and lithium

• Operating Temperature: -31°F to 149°F

12V 100Ah Lithium Battery (Bluetooth)

• Nominal Voltage: 12.8V

• Rated Capacity: 100Ah

• Cycle Life: Up to 2,000 cycles at 80% depth of discharge

• Max Continuous Charge Current: 50A

• Max Continuous Discharge Current: 100A

• Protection Rating: IP65

12V 100Ah Self-Heating Lithium Battery

• Nominal Voltage: 12.8V

• Rated Capacity: 100Ah

• Cycle Life: Up to 4,000 cycles at 80% depth of discharge

• Automatic Self-Heating Below 41°F (5°C)

• Protection Rating: IP54

1000W 12V Pure Sine Wave Inverter

• Continuous Output: 1000W

• Peak Output: 2000W

• AC Output: 115V

• Frequency: 60Hz

• Efficiency: Over 90%

• USB Output: 5V / 2.1A

• Thermally Controlled Cooling Fan

Warranty Coverage

• Solar Panels

  • 95% output for 5 years

  • 90% output for 10 years

  • 80% output for 25 years

  • 10-year material and workmanship warranty

• Accessories and Electronics

  • 1-year material and workmanship warranty
