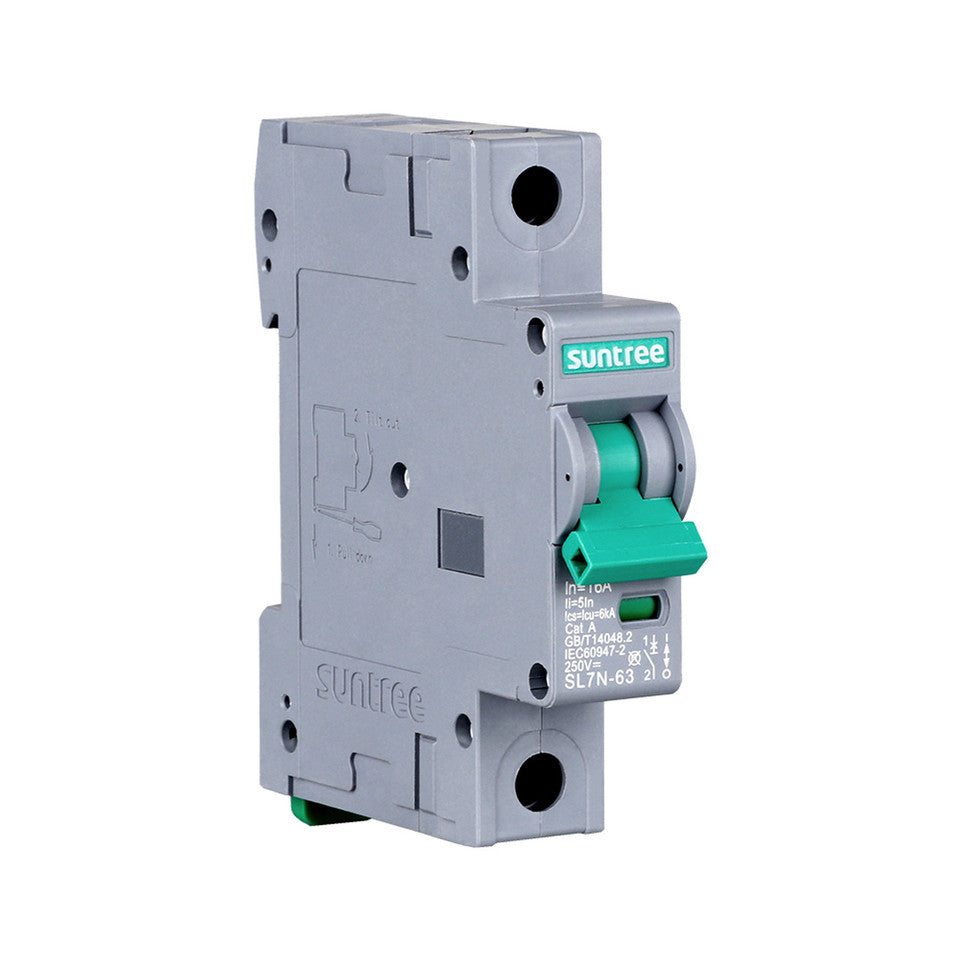

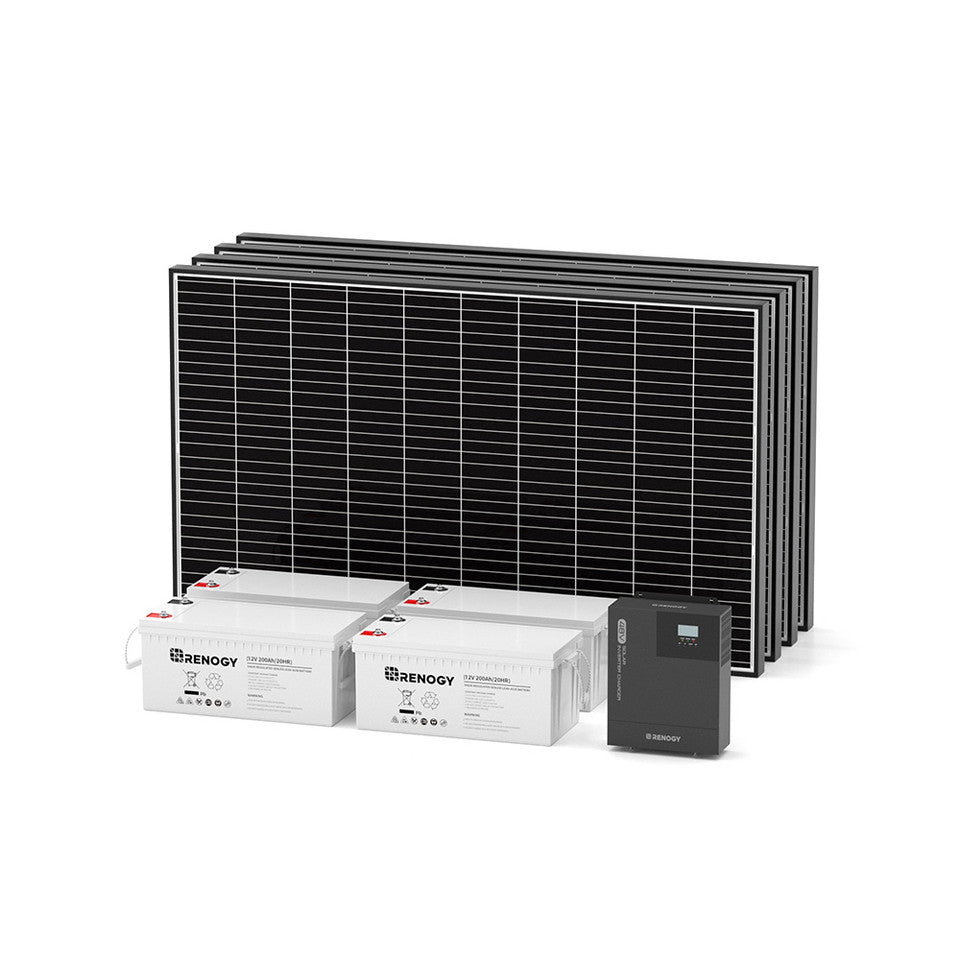

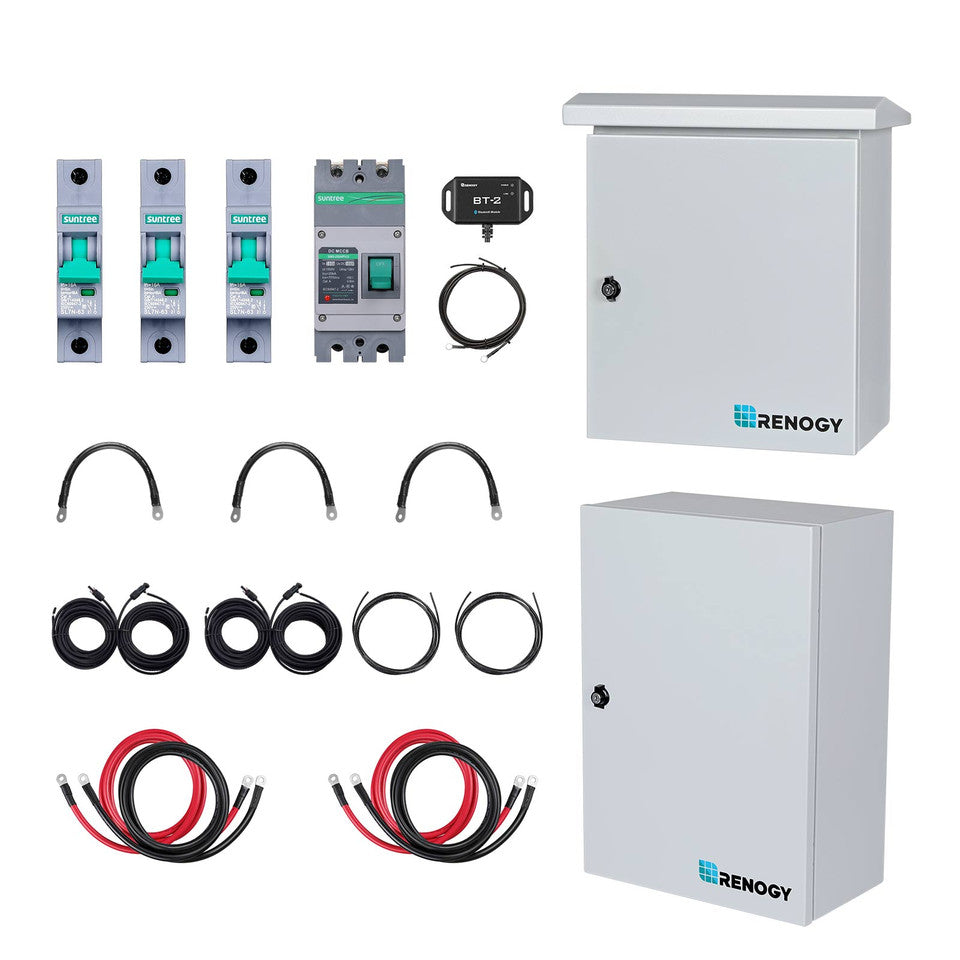

The Renogy 1.2kW Essential Kit offers an ideal entry-level solution for powering your tiny home with dependable solar energy at a budget-friendly cost. This all-inclusive package provides everything needed for an off-grid setup—efficient solar panels, batteries, an inverter, wiring, key safety components, and Bluetooth monitoring for convenient system control.

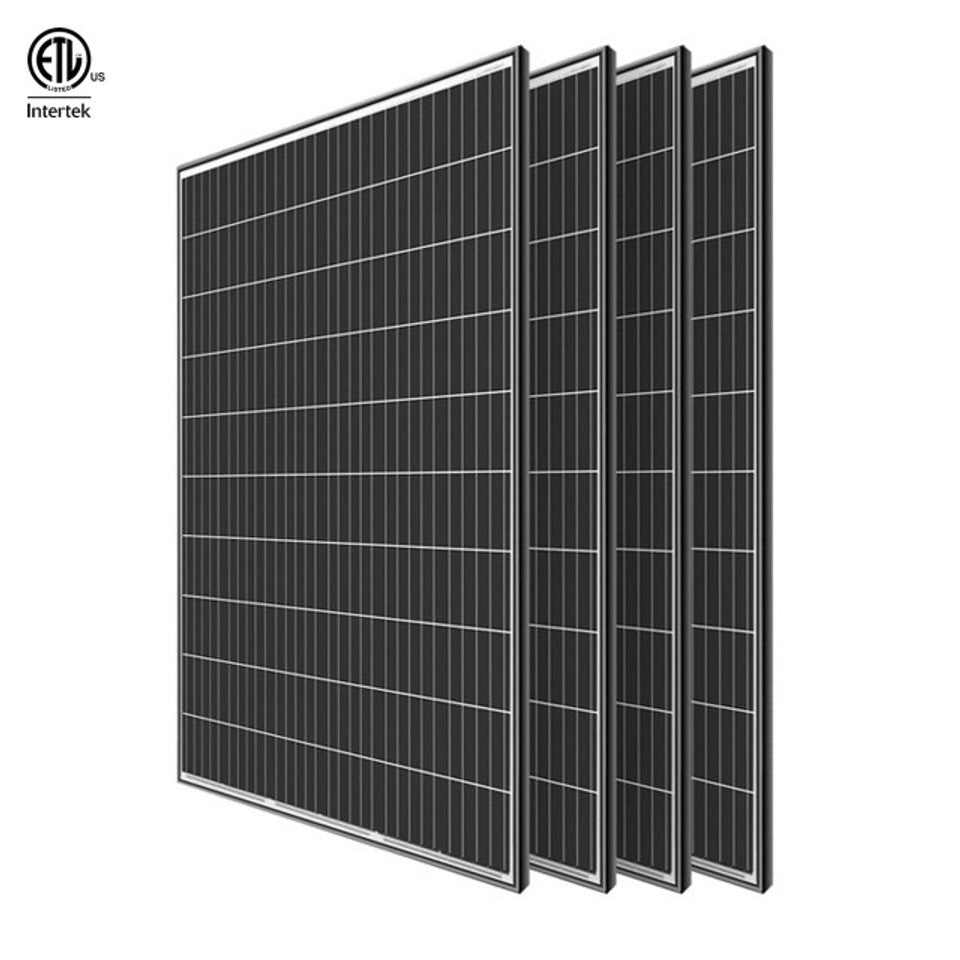

Maximum Power at STC: 320W
Optimum Operating Voltage (Vmp): 32.7V
Open-Circuit Voltage (Voc): 40.1V
Optimum Operating Current (Imp): 9.79A
Short-Circuit Current (Isc): 10.36A
Operating Temperature: -40°F to 185°F
Cell Efficiency: 21%
Maximum System Voltage: 1000V DC (UL)
Maximum Series Fuse Rating: 15A
Weight: 39.7lbs
Dimensions: 65.6 x 39.4 x 1.4 in
Certifications: CE, ISO, UL
Output Waveform: Pure Sine Wave
Max Rated Power: 3500W
Input Voltage: 120VAC
Input Voltage Range: 85VAC ~ 140VAC
Input/Output Frequency: 50/60Hz Adjustable
Output Voltage: 120VAC (100VAC~120VAC, 5VAC Increments)
Charge Controller Type: MPPT
Max PV Input/Output Power: 4400W
Max PV Charging Current: 80A
Dimensions: 17.51 x 12.99 x 4.88in / 444.8 x 330 x 124 mm
Weight: 22.38 lbs /10.15kg
opc:

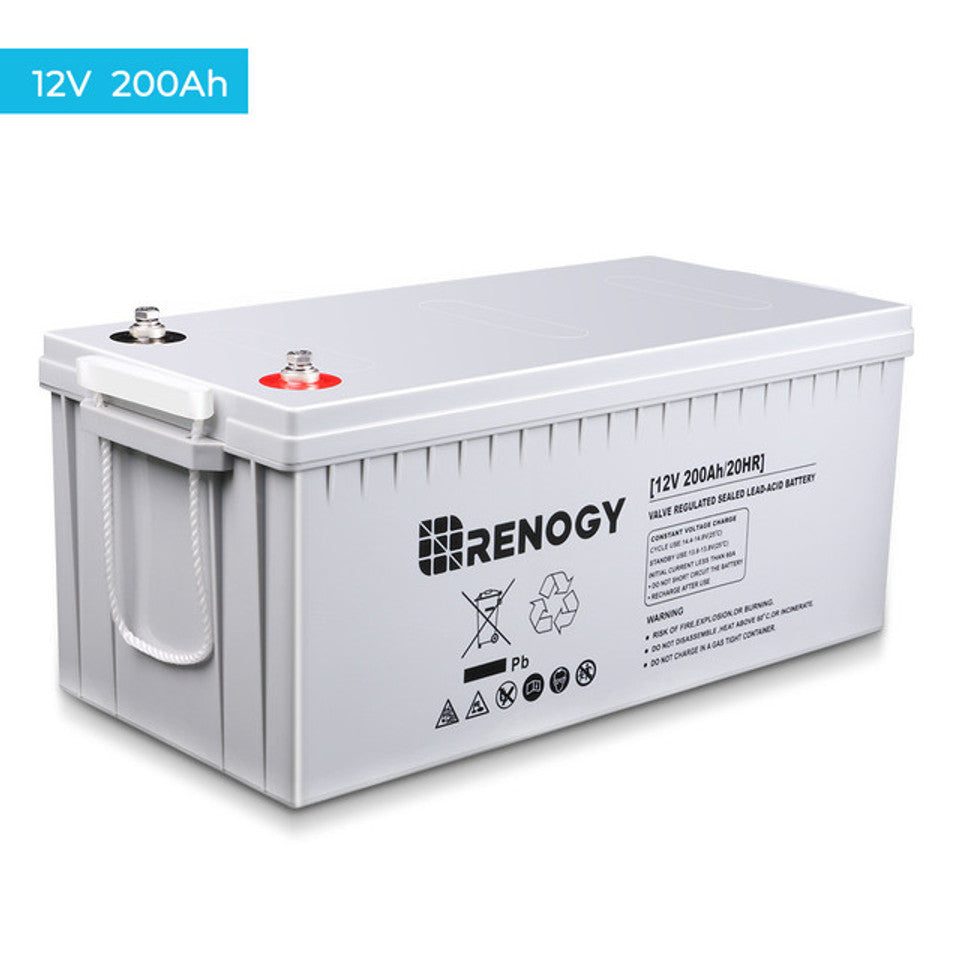

Battery Type: AGM
Rated Capacity: 200Ah (20 Hour Rate to 10.5V)
Nominal Voltage: 12V
Internal Resistance: Approx. 3.5mΩ
Connection Method: In Series, and In Parallel (up to 4)
Dimensions: 20.6 x 9.4 x 8.8 in / 522 x 240 x 224 mm
Weight: 127.9 lbs / 58 kg
Standard Operation Temperature: 77°F±9°F（25°C±5°C）
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty
Accessories: 1-year material and workmanship warranty
Package Includes
