Renogy Energy 1200W/2500W Tiny House Home Cabin Kit SKU: RKIT1200D-US

Tiny House / Home Cabin Solar Kit

Key Features

• Latest-generation high-efficiency PERC solar panels for dependable energy production

• Integrated 48V 3500W solar inverter charger for seamless power conversion and charging

• 2.5kWh battery storage for reliable daily energy needs

• Built-in DC circuit protection for enhanced system safety

• Bluetooth monitoring for real-time system visibility

Effortless Off-Grid Power for Everyday Living

Designed for those who want a simple, reliable off-grid solution, this Tiny House / Home Cabin Kit delivers sustainable energy for both essential appliances and comfort-focused devices throughout the day. It supports an independent lifestyle without sacrificing convenience.

At the core of the system is a 48V 3500W solar inverter charger, which efficiently converts stored DC power into standard AC electricity for household appliances. When required, it also supports AC or grid charging, adding flexibility and peace of mind.

Smart Monitoring Made Easy

The included BT-2 Bluetooth module enables real-time performance tracking from your smartphone. Monitor solar production, battery status, and overall system health with ease for confident day-to-day operation.

Comprehensive System Design

This kit includes all essential wiring, protection components, and mounting options to support clean, organized installations across a wide range of applications, including tiny homes, cabins, RVs, and off-grid structures.

Package Options Overview

Base System (RKIT1200D)

Includes:

• 4 × 320W monocrystalline solar panels

• Solar extension cables

• 5-string solar combiner box

• DC breaker box with multiple DC circuit breakers

• Heavy-gauge PV wiring

• 48V 3500W pure sine wave solar inverter charger

• Battery-to-inverter cables

• Bluetooth monitoring module

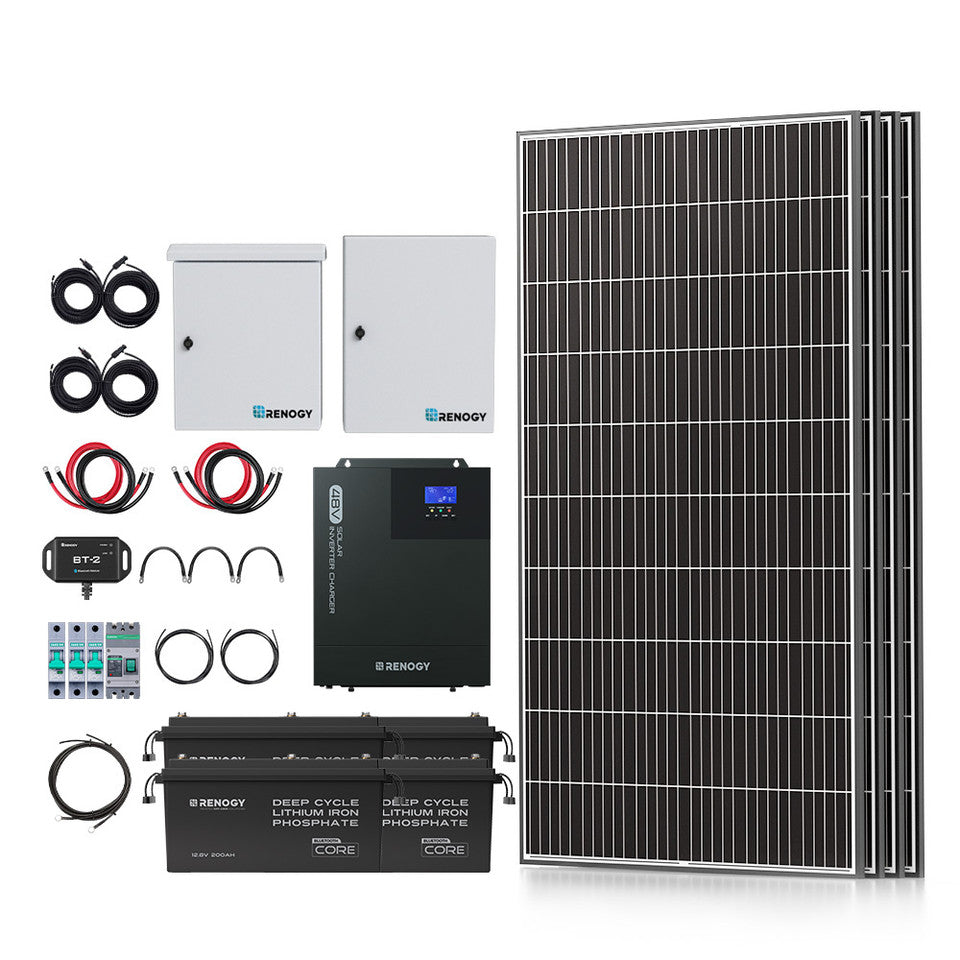

Lithium Battery Configuration (RKIT1200D-CLFP)

Includes base system plus:

• 4 × 12V 200Ah Pro Series lithium batteries

• Battery interconnect cables

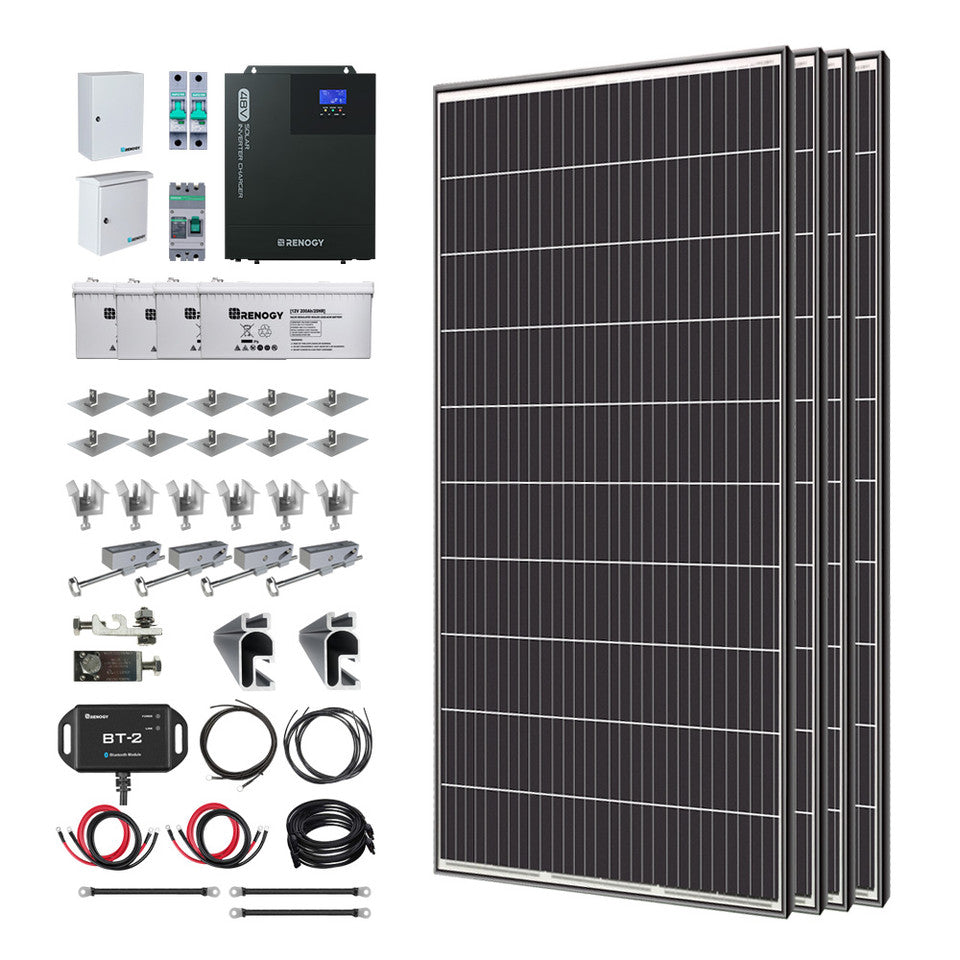

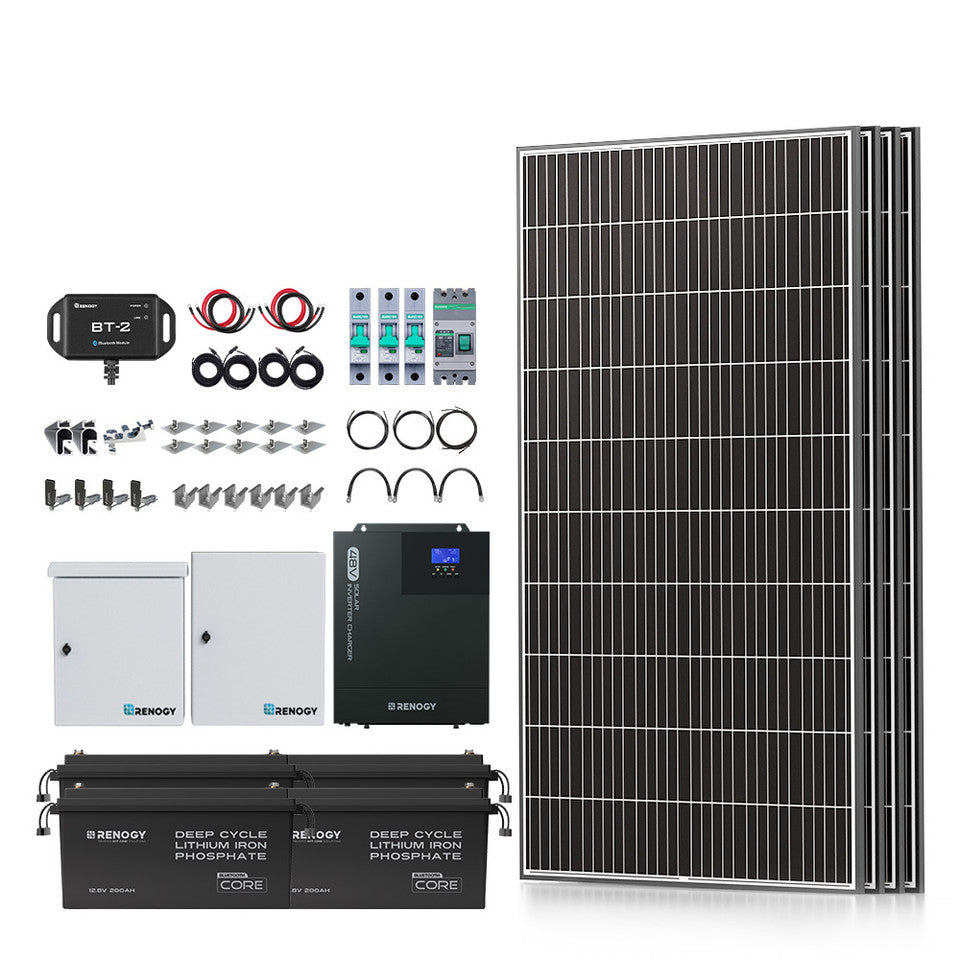

Roof-Mount Configuration (RKIT1200D-R)

Includes base system plus:

• Choice of lithium or AGM batteries

• Roof-mount rails, clamps, flashing, and grounding hardware

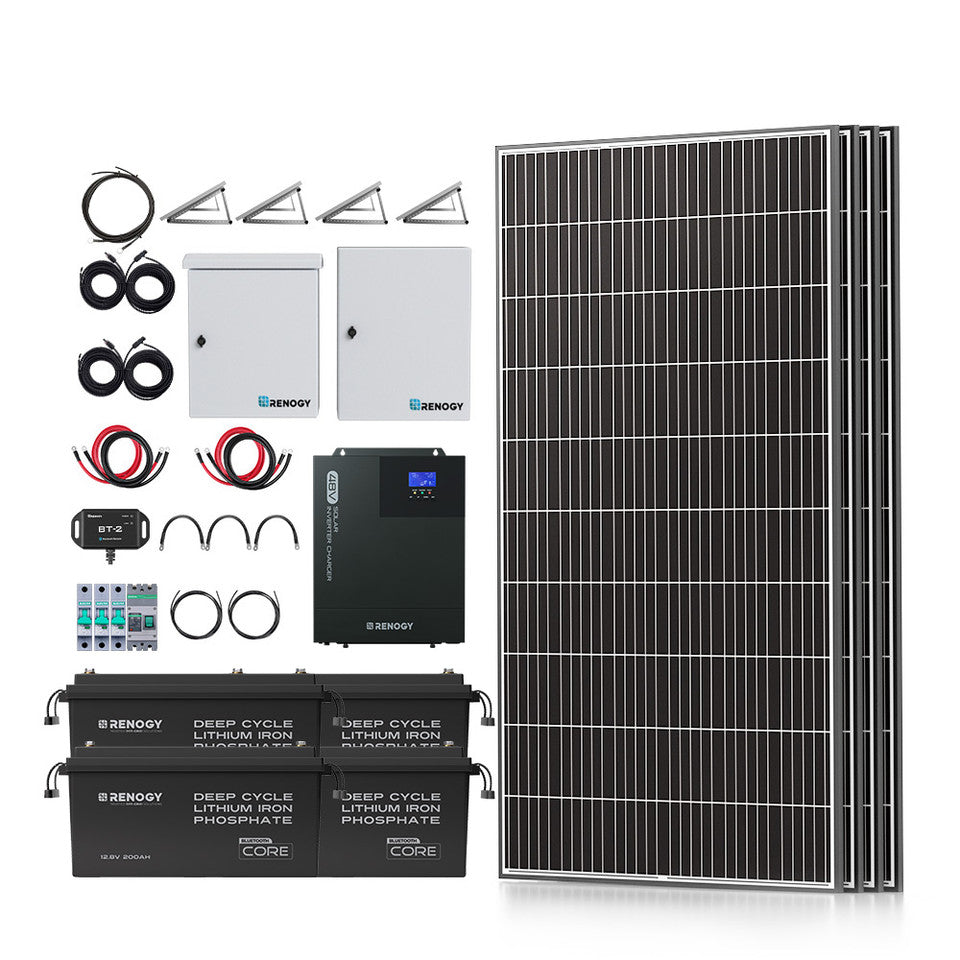

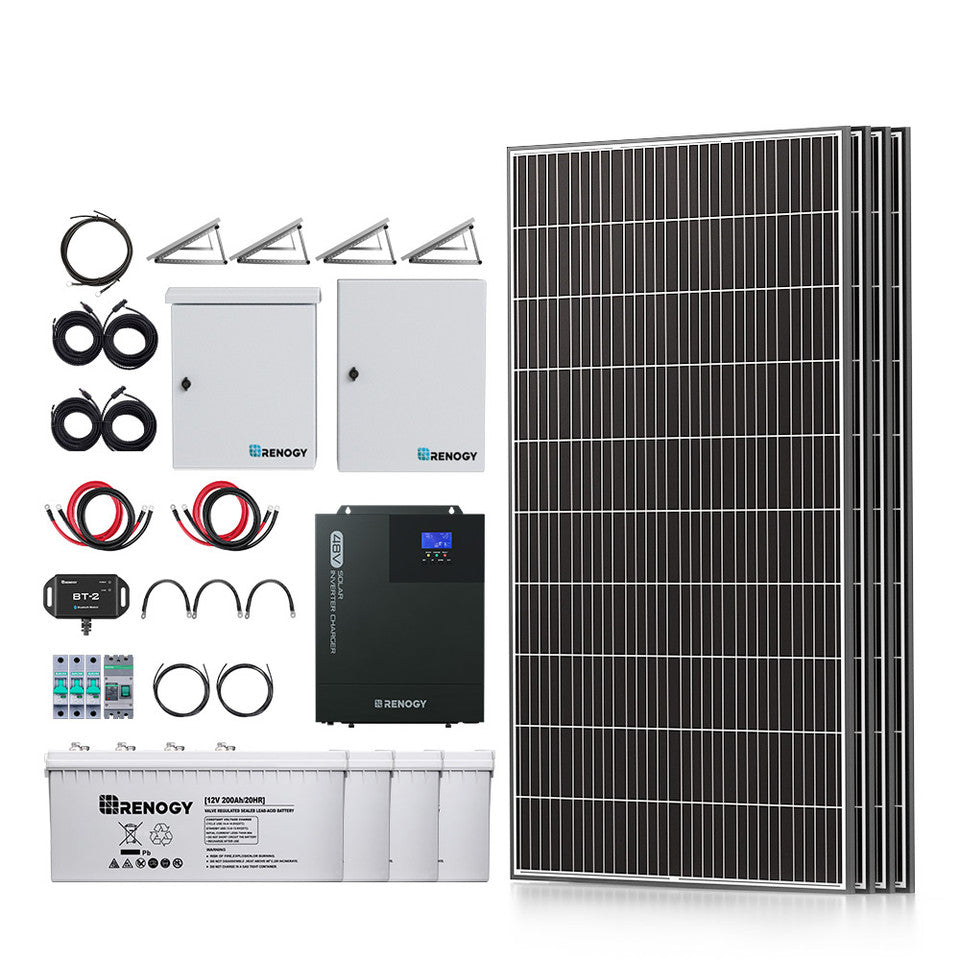

Tilt-Mount Configuration (RKIT1200D-T)

Includes base system plus:

• Choice of lithium or AGM batteries

• Adjustable tilt-mount brackets for optimized solar angle

Expanded System Option (RKIT2500D)

Includes:

• 8 × 320W monocrystalline solar panels

• Expanded wiring, protection, and mounting components

• 48V 3500W inverter charger

• Bluetooth monitoring module

• Optional lithium or AGM battery configurations

Component Specifications

320W Monocrystalline Solar Panel

• Rated Power: 320W

• Operating Voltage (Vmp): 32.7V

• Open-Circuit Voltage (Voc): 40.1V

• Operating Current (Imp): 9.79A

• Short-Circuit Current (Isc): 10.36A

• Cell Efficiency: 21%

• Operating Temperature: -40°F to 185°F

• Maximum System Voltage: 1000V DC

• Weight: 39.7 lbs

48V 3500W Pure Sine Wave Solar Inverter Charger

• Continuous Output Power: 3500W

• Output Waveform: Pure sine wave

• AC Input Voltage Range: 85–140VAC

• Output Voltage: Adjustable 100–120VAC

• Frequency: 50/60Hz selectable

• Integrated MPPT charge controller

• Maximum PV Input Power: 4400W

• Maximum Charging Current: 80A

12V 200Ah AGM Battery (Option)

• Battery Type: AGM

• Capacity: 200Ah

• Nominal Voltage: 12V

• Configurable in series or parallel (up to four units)

• Designed for stable, long-term stationary storage

12V 200Ah Core Series Lithium Battery (Option)

• Battery Chemistry: Lithium Iron Phosphate

• Nominal Voltage: 12.8V

• Rated Capacity: 200Ah

• Cycle Life: Up to 5,000 cycles (80% DOD)

• Maximum Charge / Discharge Current: 200A

• IP67-rated enclosure for enhanced durability

Warranty Coverage

Solar Panels

• 95% output for 5 years

• 90% output for 10 years

• 80% output for 25 years

• 10-year materials and workmanship warranty

Accessories

• 1-year materials and workmanship warranty
