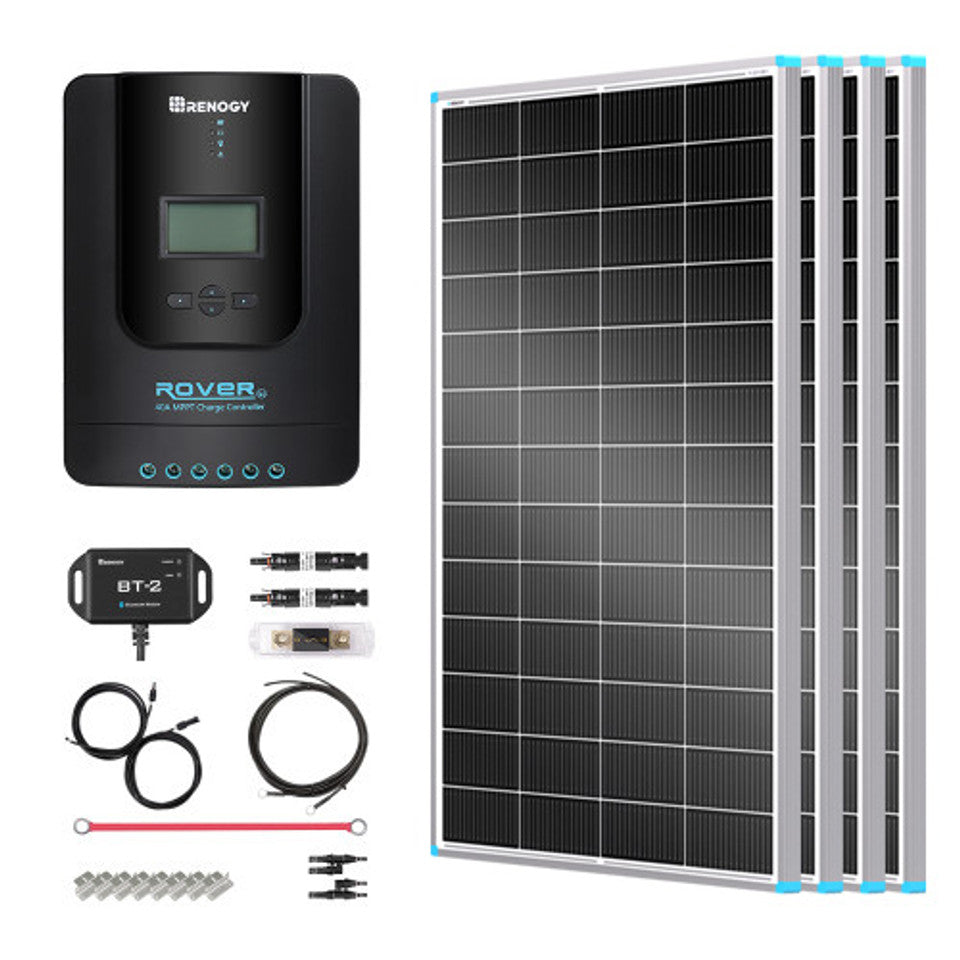

Renogy 800W 12V General Off-Grid Solar Kit SKU: RKIT800BC-R60D4

• Customizable solar power kit

• Generates more energy even in partial shade

• Provides a steady, eco-friendly power supply

• Offers multiple options with flexible combinations

• Comes with a 25-year performance warranty

The Renogy 800W Solar Kit – General Off-Grid Series is a dependable, high-quality energy solution perfect for powering yards, RVs, boats, or remote cabins. It easily delivers a daily output of 3.5–4kWh, giving you the freedom to enjoy reliable, clean energy wherever you need it—whether for outdoor adventures, emergencies, or everyday use.

Featuring four 200W solar panels (available in classic rigid or ultra-flexible styles) and a 60A MPPT charge controller from the trusted Rover or Rego series, this kit is built for durability and strong performance. You can choose from a variety of battery options, including smart lithium batteries with self-heating or more affordable lithium batteries with Bluetooth monitoring. Additionally, customize your system with either a 3000W pure sine wave inverter or an inverter charger to meet your power demands.

Complete with all necessary cables, connectors, mounts, and monitoring tools, the Renogy 800W Solar Kit offers a seamless, reliable, and sustainable off-grid power experience—ideal for off-grid living or emergency backup power.

Max Power at STC: 200W

Open Circuit Voltage: 37.44V

Short Circuit Current: 6.85A

Optimum Operating Voltage: 31.03V

Optimum Operating Current: 6.45A

Operating Temperature: -40°F~185°F / -40℃~85℃

Maximum System Voltage: 600 VDC UL

Maximum Series Fuse Rating: 15A

Dimensions: 1262x764x30mm/49.7x30.1x1.2in

Weight: 10.6kg/23.4lbs

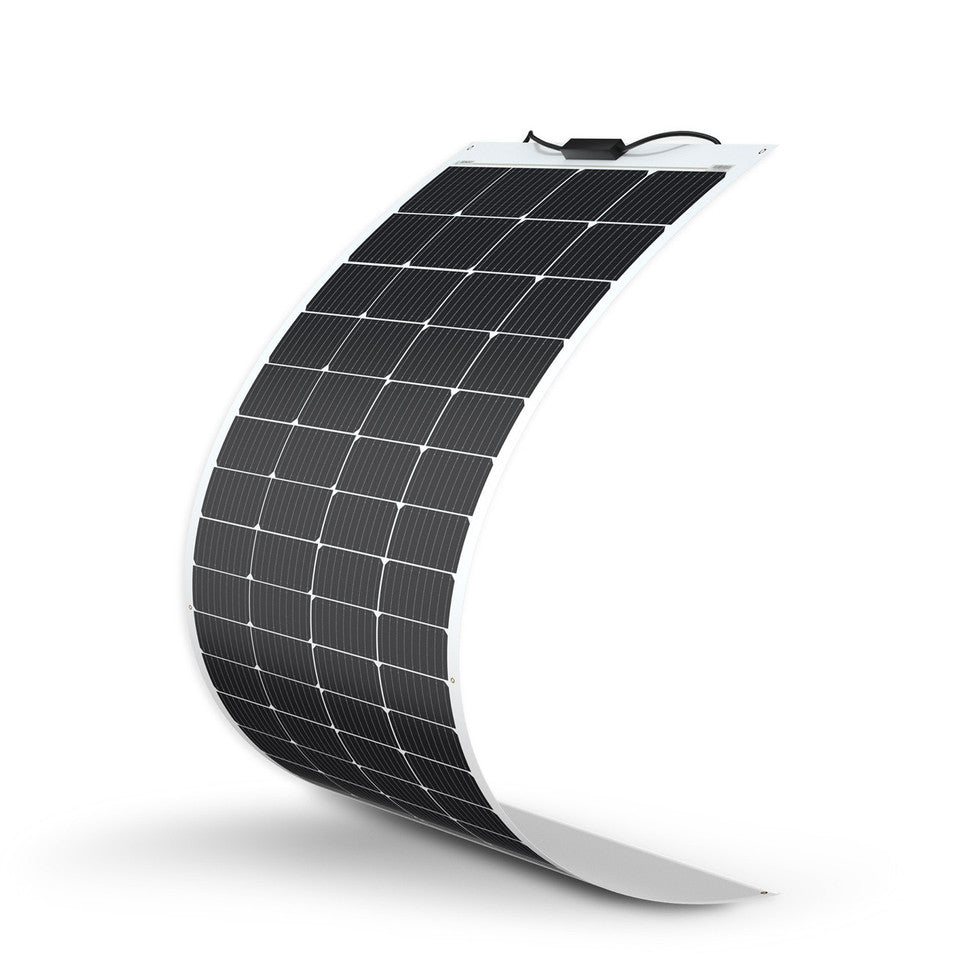

Maximum Power at STC: 200W

Open-Circuit Voltage (Voc): 23.9V

Short Circuit Current: 10.74A

Optimum Operating Current (Imp): 10.02A

Maximum System Voltage: 600V DC

Maximum Series Fuse Rating: 15A

Operating Temperature: -40°F to 176°F (-40ºC to +80ºC)

Dimensions: 1605 x 748 x 3 mm (63.2 x 29.4 x 0.1 in)

Weight: 4.9 kg / 10.8 lbs

opc:

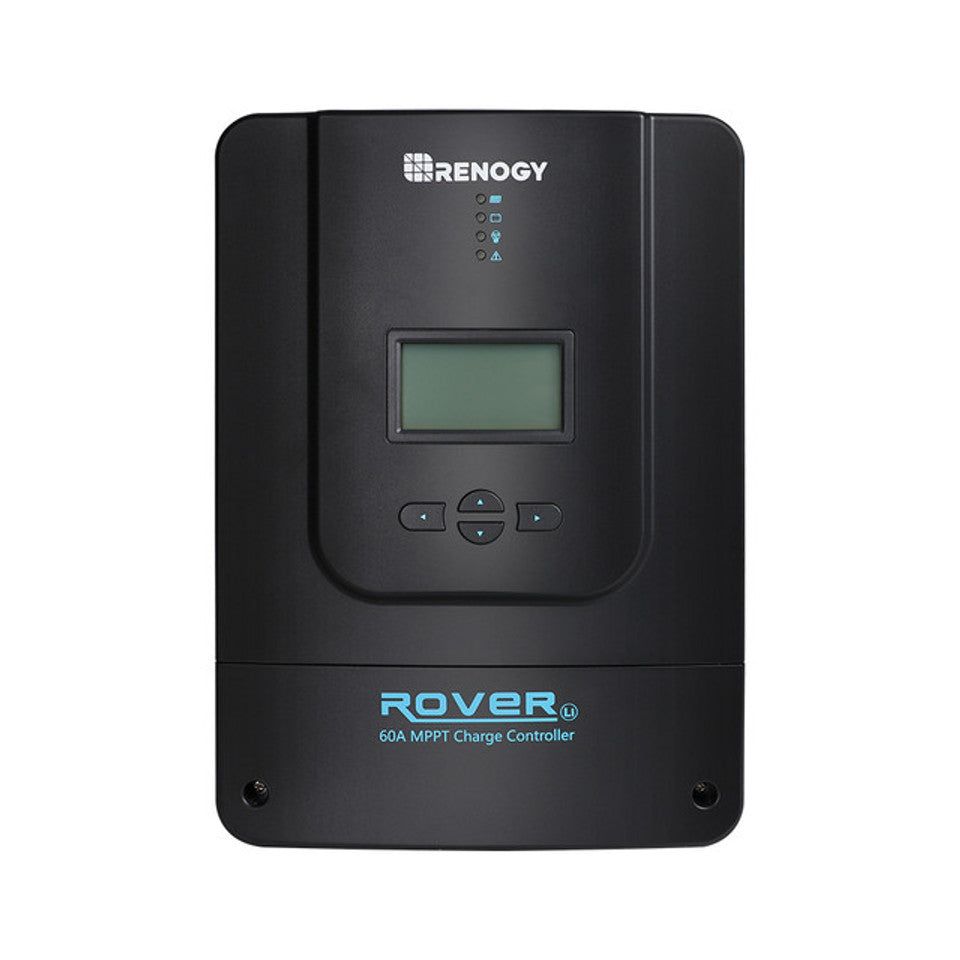

Nominal Voltage: 12V/24V/36V/48V Auto Recognition (for non-lithium batteries)

Rated Charge Current: 60A

Rated Load Current: 20A

Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V

Max. PV Input Voltage: 150 VDC (25°C), 140VDC (-25°C)

Self-Consumption: 0.7W-1.2W

Operating Temperature: -31 °F to 113 °F (-35 °C to 45 °C )

Dimensions: 285 x 205 x 102mm (11.22 x 8.07 x 4.00in)

Weight: 7.9lbs

opc:

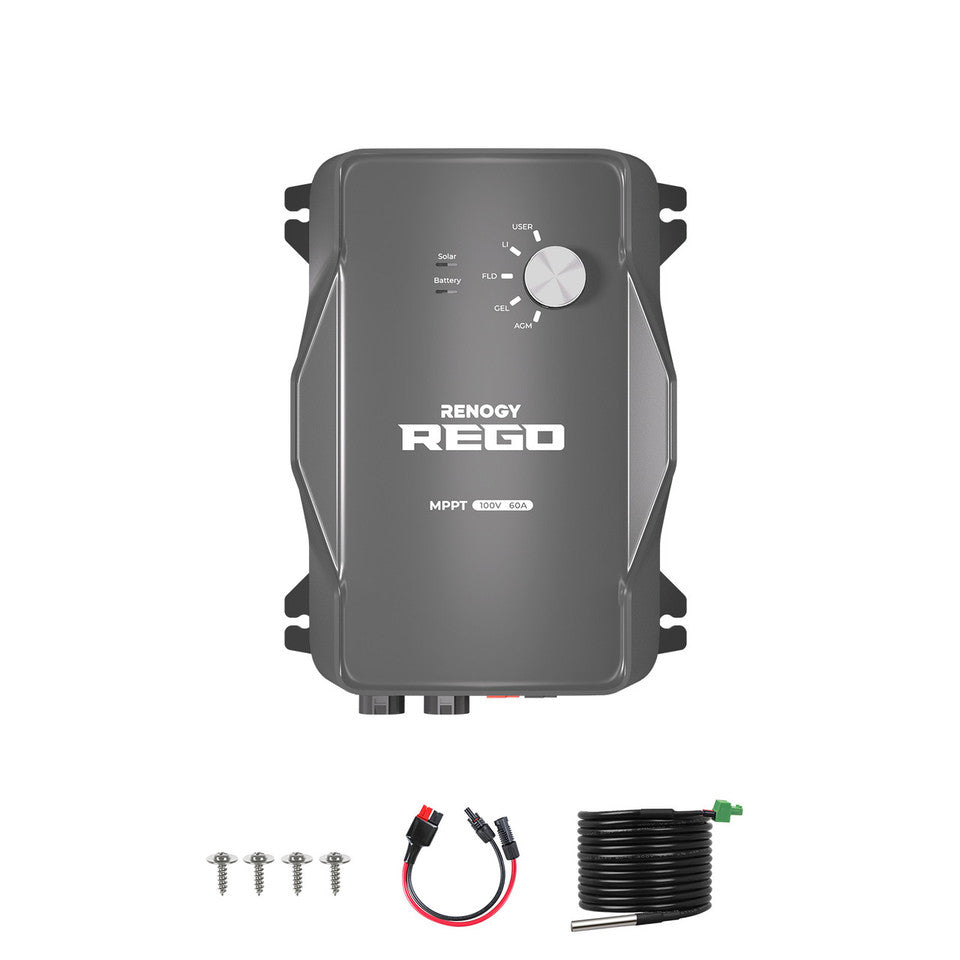

Nominal System Voltage: 12 V

Rated Charge Current: 60A

Max. PV Input Power: 800W

MPPT Voltage Range: 15 - 100 VDC /12V

Solar Input Voltage Range (VOC): 100 V

Max Input Current (short-circuit, Isc): 50A

Power Limiting Protection: Up to 800W/12V

Operating Temperature Range: -20 ℃ - 60℃

Dimensions: 9.43 x 7.36 x 4.28 inch / 239.4 x 187 x 108.8 mm

Weight: 5.07 lbs/ 2.30kg

Battery Type: Lithium Iron Phosphate

Rated Capacity: 100Ah (0.5C, 25℃)

Voltage: 12V

Voltage Range: 10V to 14.8V

Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

Connection Method: Parallel (Up to 8)

Protection Rating: IP67

Maximum Charge Current: 100Ah

Maximum Discharge Current: 100Ah

Peak Discharge Current: 245A@30s

Charge Temperature Range: -4°F to 131°F (-20°C to 55°C)

Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)

Storage Temperature Range: -13°F to 149°F (-25°C to 65°C)

Operation Relative Humidity: 10% to 95%

Communication Protocol: Bluetooth

Dimensions: 10.6 x 7.6 x 8.1 in (268 x 193 x 205 mm)

Weight: 26.9 lbs. (12.2 kg)

opc:

Battery Type: Lithium Iron Phosphate

Rated Capacity: 100Ah (0.5C, 25℃)

Voltage: 12V

Cycle Life (0.5C, 77°F/25°C): 5000 Cycles (80% DOD)

Charge Voltage: 14.6V

Protection Rating: IP65 (Dust-tight & splash-resistant)

Maximum Charge Current: 100A

Maximum Discharge Current: 100A

Charge Temperature Range: -22°F to 131°F (-30°C to 55°C) – Ideal for safe charging

Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)

Connection Method: Series & Parallel (up to 4S4P)

Terminal Bolt Size: M8 x 1.25 × 12 mm

Dimensions: 9.02 × 5.43 × 8.39 in (229 × 138 × 213 mm)

Weight: 21.38 lbs (9.7 kg)

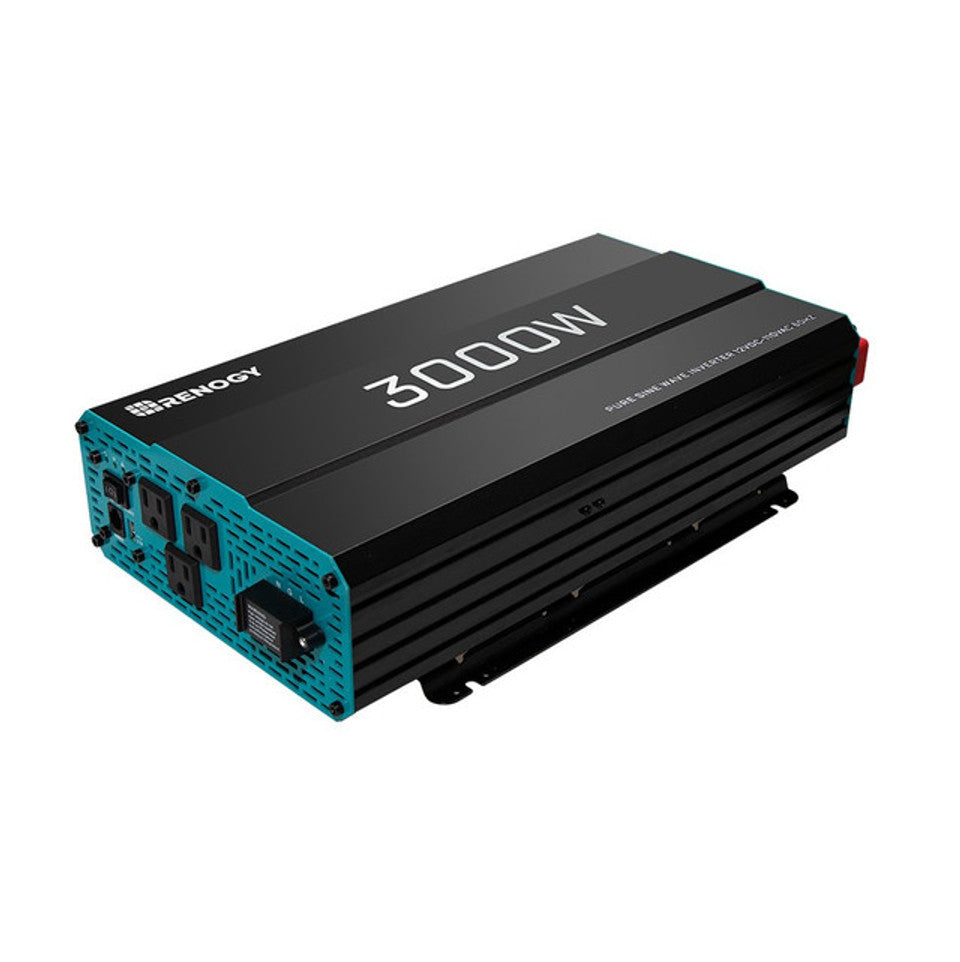

Continuous Output Power: 3000W

Peak Power Rating: 6000W

Output Voltage: 120V

Output Frequency: 60 Hz ± 0.1%

AC Output Sockets: 3

AC Terminal Block: 1

USB Power Port: 5V/2.1A

Power Output Control: AC On/Off Switch, and Remote Control

Output Waveform: Pure Sine Wave

Nominal Efficiency: > 90%

Operating Temperature Range: -4°F - 104°F

Cooling Fan: Thermally controlled

Dimensions: 18.9 x 9.0 x 4.0 in

Weight: 12.5 lb

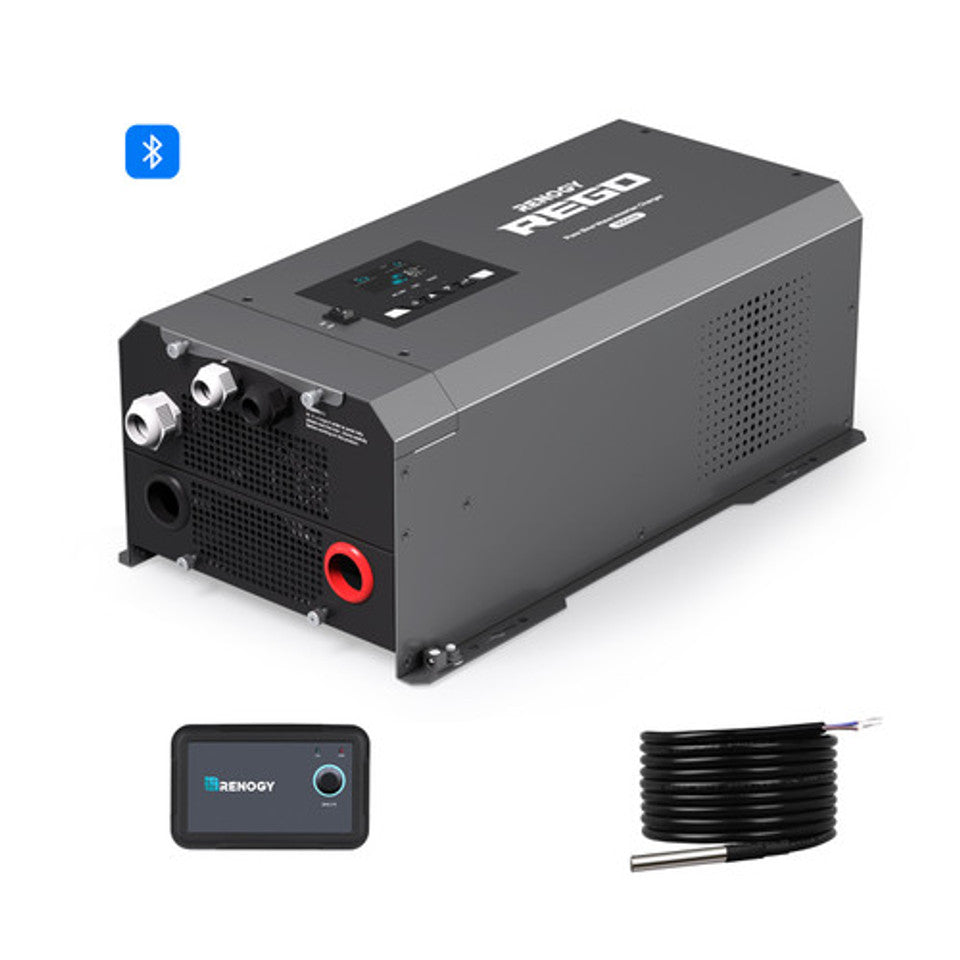

Continuous Power: 3000W

AC Output Voltage Range: 100~120VAC configurable, 5V interval

Surge Power: 9000W

Nominal Efficiency: > 90% Peak

Output Waveform: Pure Sine Wave

Output Frequency : 50/60 Hz ± 0.1%

Input Voltage Range: 90-138 VAC

Input Wave Form: Sine Wave (Utility or Generator)

Operating Temperature: -20-40°C/-4-104°F

Storage Temperature: -30 ~ 70°C / -22 ~ 158°F

Dimensions: 20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm

Weight: 63.5 lbs / 28.8 Kg

Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty

Accessories: 1-year material and workmanship warranty

Package Includes
